FEATURES
TECHNICAL DATA
| Code | Power | LED | Dim | Input | CCT | Lumen | CRI | Beam Angle | PF |
| DL-SQ525 |
4/6/8W | SMD2835 |
Yes |
220-240V~50/60Hz |
3000/4000/6500K |
400/600/800lm | >80Ra |
110° |
>0.7 |
| DL-SQ325R-108LND3 | 4/6/8W | SMD2835 | Yes | 220-240V~50/60Hz | 3000/4000/6500K | 400/600/800lm | >80Ra | 110° | >0.7 |
| DL-SQ325A-108LND3 | 4/6/8W | SMD2835 | Yes | 220-240V~50/60Hz | 3000/4000/6500K | 400/600/800lm | >80Ra | 60° | >0.7 |

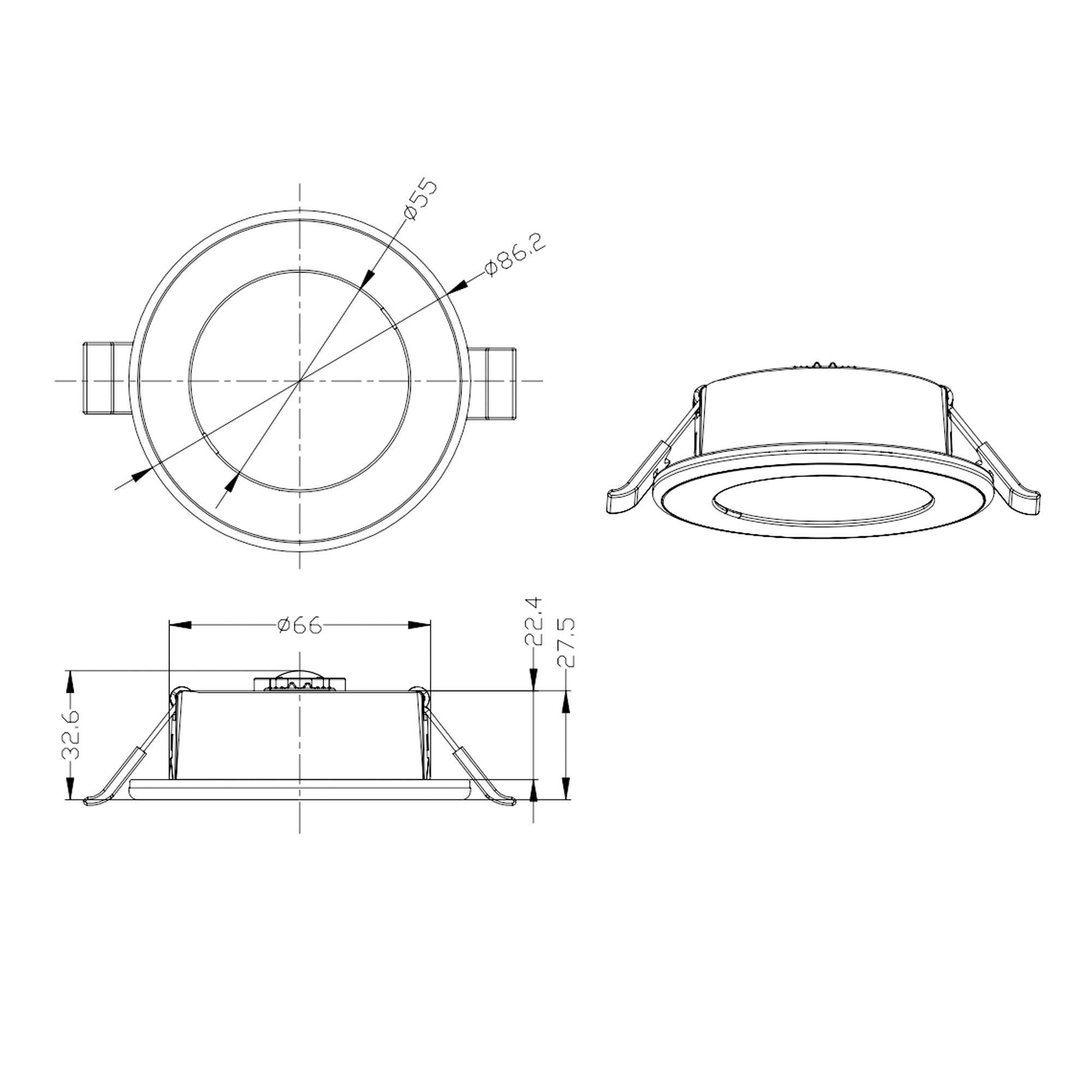

CONSTRUCTION
| Code | Driver |
Body Material | Trim Color | Dimension | Weight | Cutout | IP Rating |
| DL-SQ525 |
DOB |
PP+PC |
White |
D86.2*32.6mm |
kg |
68-75mm |
IP44 |
| DL-SQ325R-108LND3 | DOB | PP+PC+Al | White/Black/Nickel/Chrome | D85*29mm | 0.051kg | 68-78mm | IP44 |
| DL-SQ325R-108LND3 | DOB | PP+PC+Al | White/Black/Nickel/Chrome | D85*29mm | 0.058kg | 68-78mm | IP44 |
PACKAGING INFORMATION
| Code | Unit/Inner Box | Inner Box Dimensions (L*W*H) |
Inner Box G.W. | Unit/Masterbox | Masterbox Size (L*W*H) |
Masterbox G.W. | Masterbox Volume |
| DL-SQ525 |
6pcs |
2308115*110mm | kg | pcs | cm | kg | m³ |
| DL-SQ325R-108LND3 | 10pcs | 30.5*10.5*9cm | 0.36kg(WH/BK)/0.72kg(NK) | 200pcs(WH/BK)/160pcs(NK) | 48*44.5*32.5cm(WH/BK)/44.5*38.5*32.5cm(NK) | 12.9kg(WH/BK)/12.17kg(NK) | 0.069m³(WH/BK)/0.056m³(NK) |
| DL-SQ325A-108LND3 | 10pcs | 30.5*10.5*9cm | 200pcs | 48*44.5*32.5cm | 0.070m³ |
