Home / Products / LED DOWNLIGHT / SJ Series / DL-SJ40 10W

Products

(+86)-0574-55003164

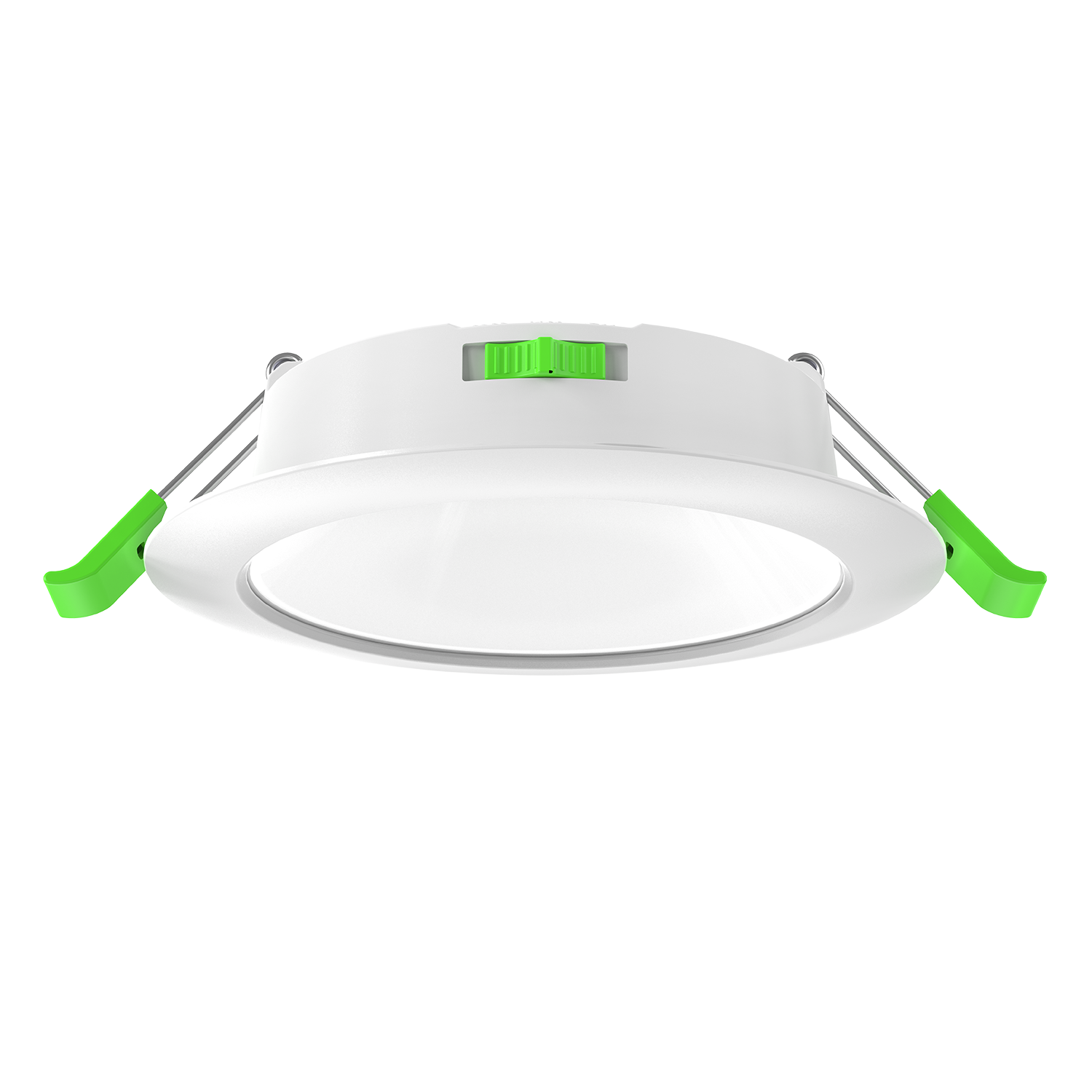

image_led_downlight_sj40

DL-SJ40 10W

   FEATURES

  • Non-Dimmable
  • 3CCT
  • Slim with only 31mm height
  • Multiple sizes available
  • CE UKCA IP44
Contact now Download

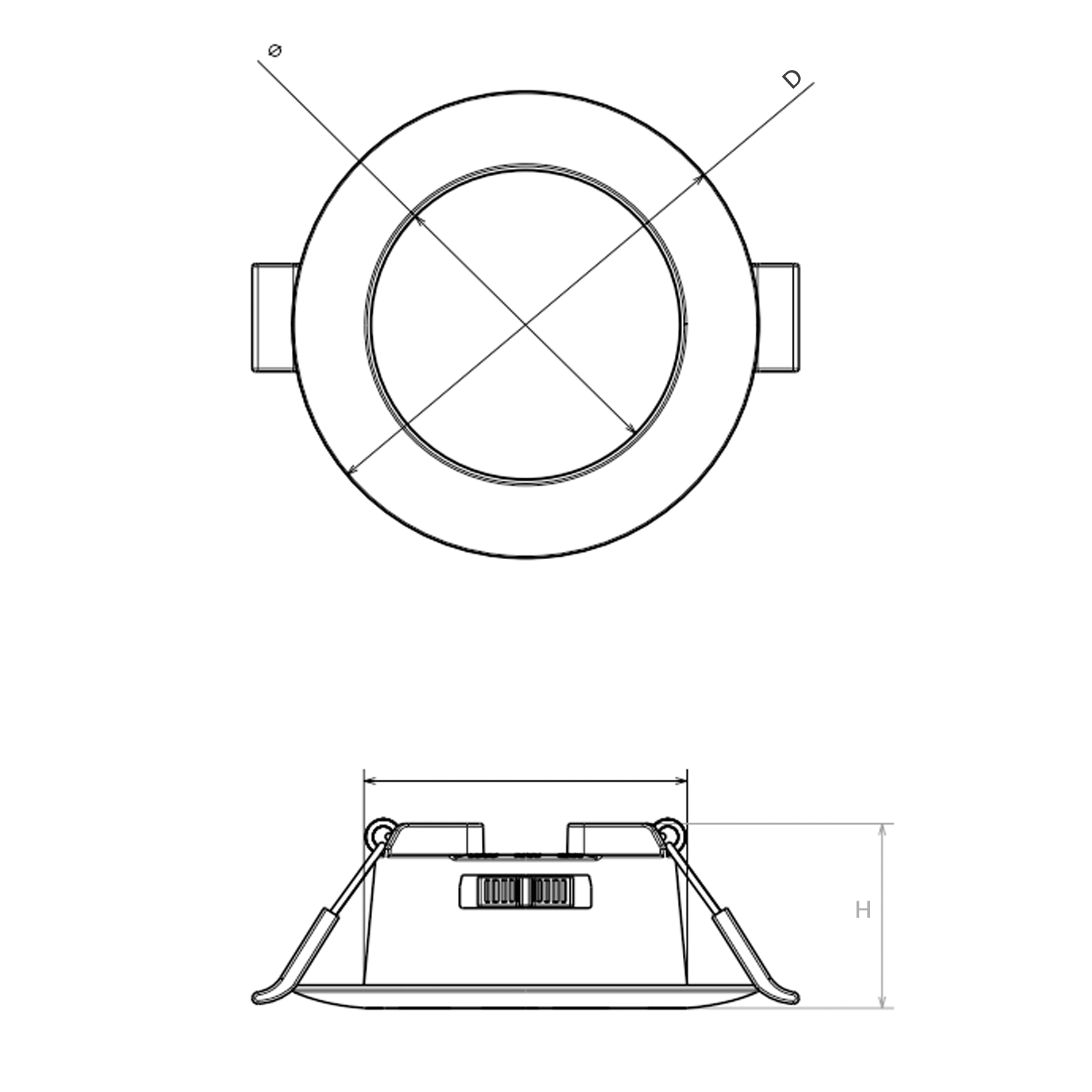

  • image_led_downlight_sjseries_dimension-1

PRODUCT DESCRIPTION

TECHNICAL DATA

Code Power LED Dim Input CCT Lumen CRI Beam Angle
DL-SJ20-104L3
 4W SMD2835
 No
 220-240V~50/60Hz
 3000/4000/6500K
 340lm
 >80Ra
 100°
DL-SJ23-105L3
 5W SMD2835
 No
 220-240V~50/60Hz
 3000/4000/6500K
 450lm
 >80Ra
 100°
DL-SJ25-105L3
 5W SMD2835
 No
 220-240V~50/60Hz
 3000/4000/6500K
 450lm
 >80Ra
 100°
DL-SJ30-104L3
 7W SMD2835
 No
 220-240V~50/60Hz
 3000/4000/6500K
 630lm
 >80Ra
 100°
DL-SJ40-107L3
 10W SMD2835
 No
 220-240V~50/60Hz
 3000/4000/6500K
 900lm
 >80Ra
 100°



CONSTRUCTION

Code Driver
 Body Material Trim Color Dimension Weight Cutout IP Rating
DL-SJ20-104L3
 DOB
 PP+PS  White
 D78*31mm
   55-68mm
 IP44
DL-SJ23-105L3
 DOB
 PP+PS  White
 D87*31mm
   68-75mm
 IP44
DL-SJ25-105L3
 DOB
 PP+PS  White
 D95*31mm
   75-85mm
 IP44
DL-SJ30-104L3
 DOB
 PP+PS  White
 D113*31mm
   90-100mm
 IP44
DL-SJ40-107L3
 DOB
 PP+PS  White
 D148*31mm
   125-135mm
 IP44



PACKAGING INFORMATION

Code Unit/Inner Box Inner Box Dimensions
(L*W*H)		 Inner Box G.W.  Unit/Masterbox Masterbox Size
(L*W*H)
 Masterbox G.W. Masterbox Volume
DL-SJ20-104L3
 12pc
 185*175*95mm
DL-SJ23-105L3
 12pc 185*190*105mm
DL-SJ25-105L3

DL-SJ30-104L3

DL-SJ40-107L3
