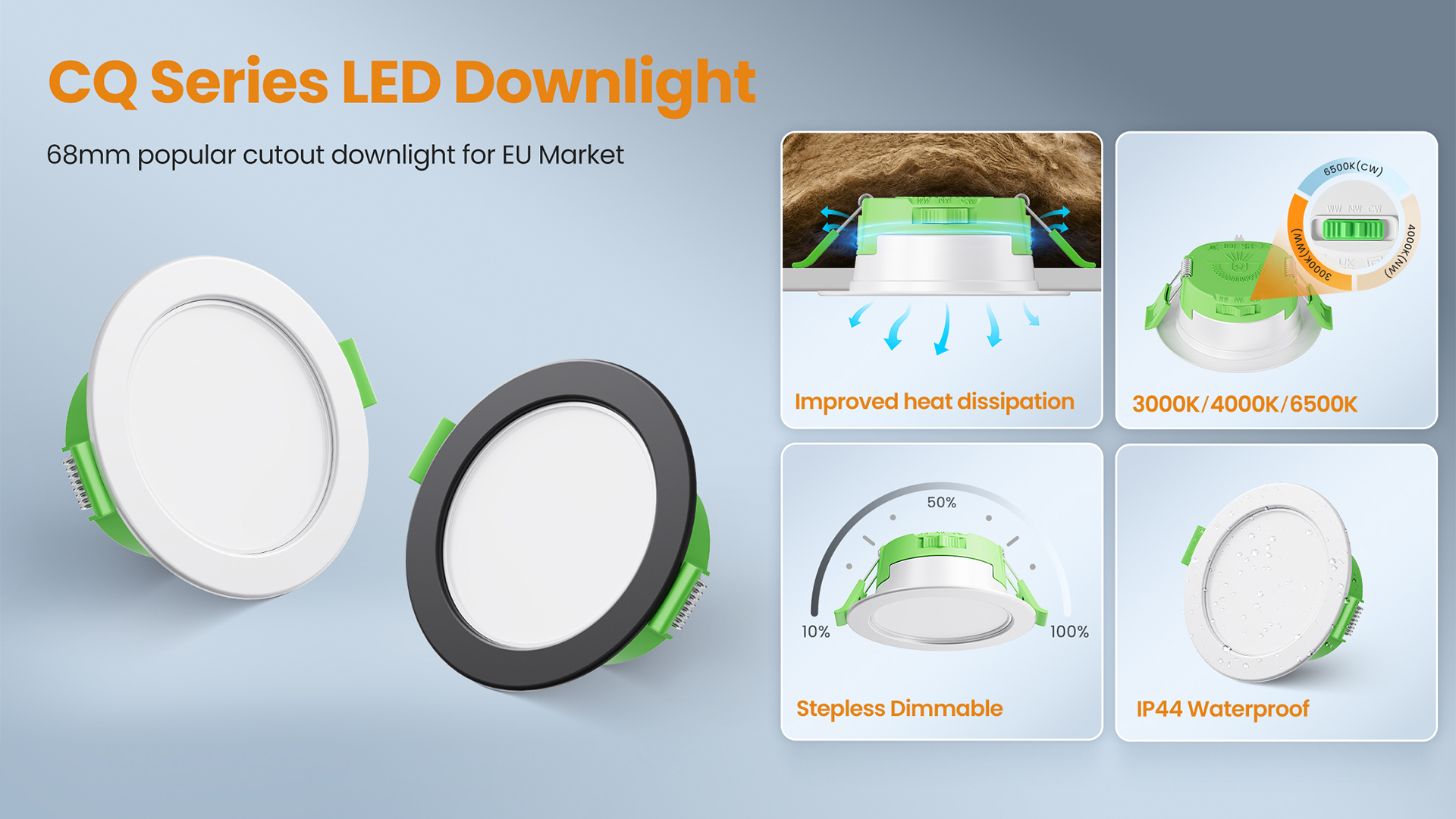

CQ Series LED 68mm popular cutout downlight for Eu Market

Products

(+86)-0574-55003164

PRODUCT DESCRIPTION

Overview

· Full metal housing - covers & protects, anti-corrosion.

· IC-rated & long-life components extend product lifespan.

· Ideal replacement for plastic downlights in EU market.

Technical Specifications

Model: DL-CQ23-107

Power: 7W

LED Type: SMD2835

Input Voltage: 220-240V~50/60Hz

CCT Selectable: 3000K/4000K/6500K

Lumen Output: 770lm

CRI: >80

Beam Angle: 110°

Dimmable: Yes

Construction & Specifications

Driver: Internal Non-Isolated CC Driver

Material: SPCD+PC

Color: White/Black

Cutout Size: 68-75mm

Protection Rating: IP44

Unit / Inner Box: 1

Inner Box Dimensions (L*W*H): mm

Certifications & Compliance

CE / UKCA / IC / IP44

FAQ - 68mm Cutout Metal Downlight

Q1: What are the key specifications of the SILANG CQ23 downlight?
A1: 7W, 68mm cutout, 770lm, 3000K/4000K/6500K selectable, CRI >80, 30,000h lifespan, CE/UKCA/IC/IP44 certified.

Q2: What ceiling cutout size is needed for the SILANG DL-CQ23?
A2: Standard 68mm cutout, 86mm face diameter, 39.5mm depth.

Q3: Is the SILANG DL-CQ23 safe for insulated ceilings and bathrooms?
A3: Yes — IC-4 rated for insulated ceilings, IP44 for wet areas, metal SPCD housing.

Q4: Can the SILANG DL-CQ23 switch between warm white, neutral white, and cool white?
A4: Yes — 3CCT selectable (3000K/4000K/6500K) with toggle switch, also dimmable.

Q5: Why choose the SILANG DL-CQ23 metal housing downlight over plastic for European projects?
A5: SPCD steel housing for better heat dissipation and durability, IC-4 rated.
