9W YB25 3CCT LED Downlight With Isolated Dimmable Driver

DL-YB25-109D3 9W

   FEATURES

  • 2.5inch with 70mm cutout
  • Dimmable+3CCT
  • Recessed face
  • Isolated driver
  • IC-4 RCM CE UKCA IP44
  • 3 years warranty
Contact now Download

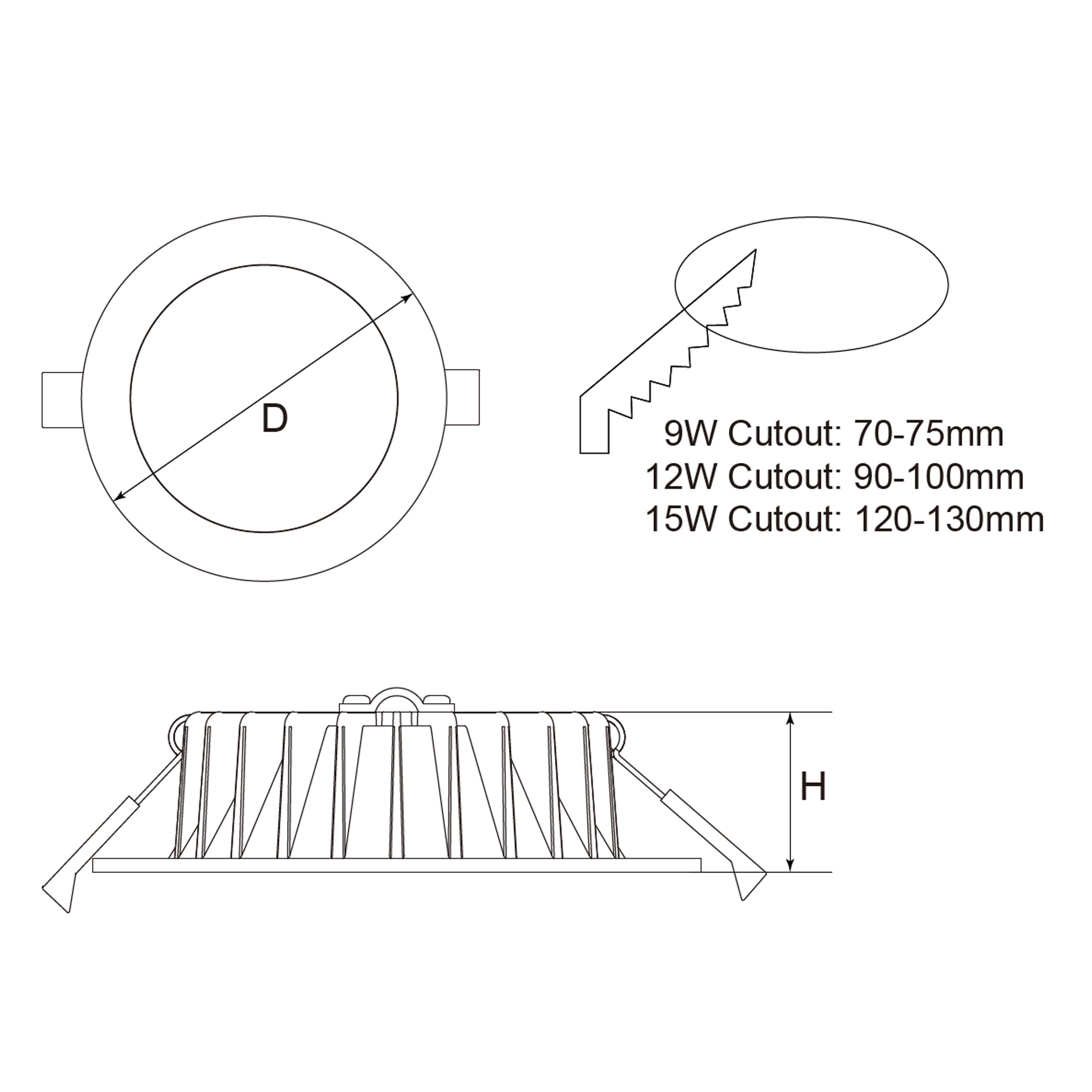

  • 9W YB25 3CCT LED Downlight With Isolated Dimmable Driver_dimension

PRODUCT DESCRIPTION

TECHNICAL DATA
Code Power LED Dim Input CCT Lumen CRI Beam Angle PF
DL-YB25-109D3
 9W SMD2835
 Yes
 220-240V~50/60Hz
 3000/4000/5700K
 700/800/750lm
 >80Ra
 110°
 >0.9
DL-YF30-112D3
 12W SMD2835
 Yes
 220-240V~50/60Hz
 3000/4000/5700K
 950/1100/1000lm
 >80Ra
 110°
 >0.9
DL-YB40-115D3
 15W SMD2835
 Yes
 220-240V~50/60Hz
 3000/4000/5700K
 1200/1350/1300lm
 >80Ra
 110°
 >0.9


CONSTRUCTION
Code Driver
 Body Material Trim Color Dimension Weight Cutout IP Rating
DL-YB25-109D3
 External
 Die-cast Aluminium
 White/Black
 D85*H40mm
 0.180kg
 70-75mm
 IP44
DL-YF30-112D3
 External
 Die-cast Aluminium
 White/Black
 D113*H40mm
 0.227kg
 90-100mm
 IP44
DL-YB40-115D3
 External
 Die-cast Aluminium
 White/Black
 D150*H45mm
 0.410kg
 120-130mm
 IP44


PACKAGING INFORMATION
Code Unit/Inner Box Inner Box Dimensions
(L*W*H)		 Inner Box G.W.  Unit/Masterbox Masterbox Size
(L*W*H)
 Masterbox G.W. Masterbox Volume
DL-YB25-109D3
 1pc
 mm 0.215kg pcs cm kg m³
DL-YF30-112D3
 1pc
 mm 0.271kg pcs cm kg m³
DL-YB40-115D3
 1pc
 mm 0.475kg pcs cm kg m³
