CS20 METAL 3CCT+DIM LED Downlight

Products

(+86)-0574-55003164

PRODUCT DESCRIPTION

Overview

· IC-rated for safe contact with thermal insulation materials.

· Durable full-metal iron housing with excellent heat dissipation for demanding applications.

· Ideal replacement for plastic downlights in EU market.

Technical Specifications

Model: DL-CS20-104D3

Power: 4W

LED Type: SMD2835

Input Voltage: 220-240V~50/60Hz

CCT Selectable: 3000K/4000K/6500K

Lumen Output: 400lm

CRI: >85

Beam Angle: 110°

Dimmable: Yes

Construction & Specifications

Driver: DOB (Driver on Board)

Material: Iron+PP+PC

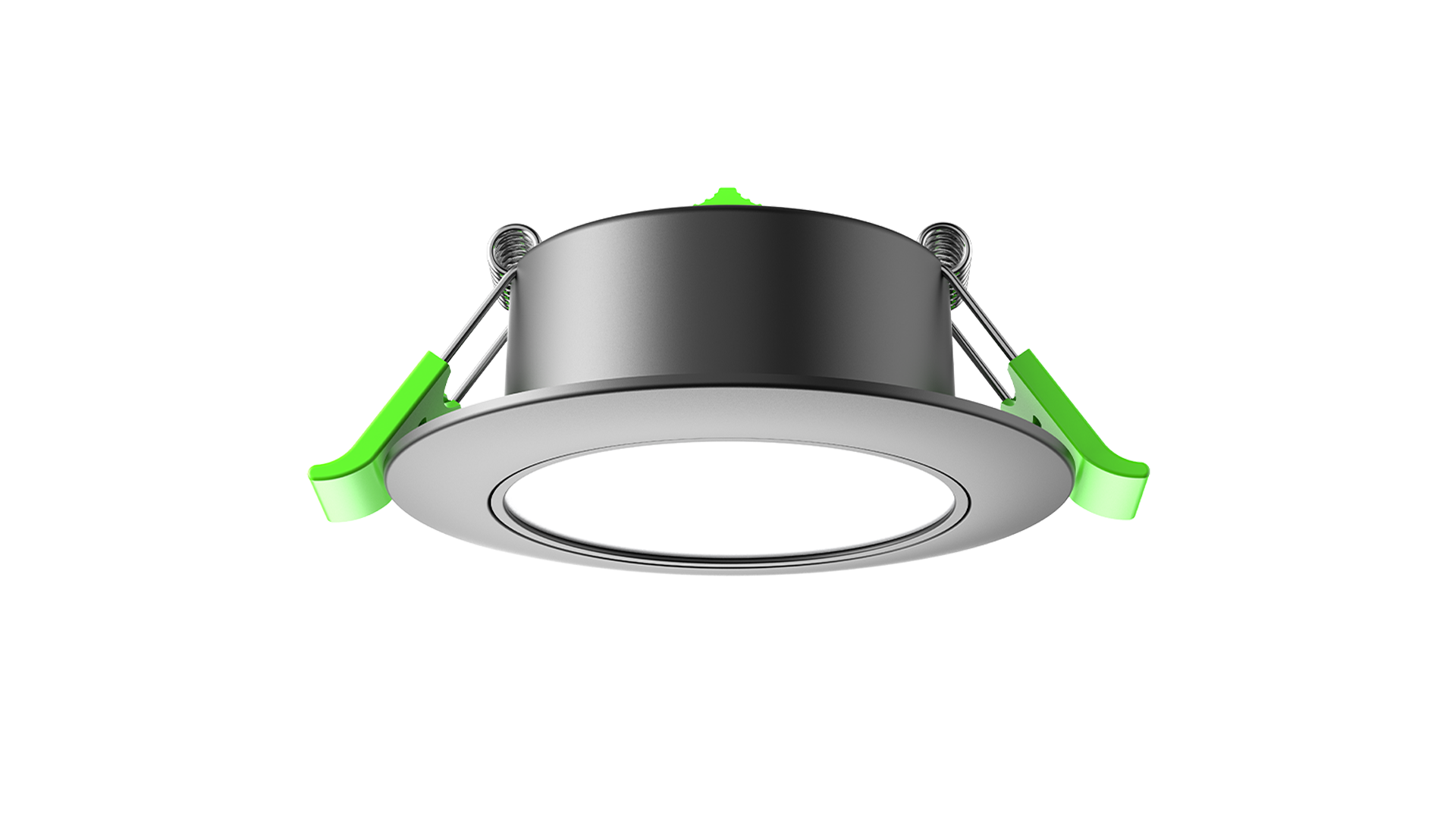

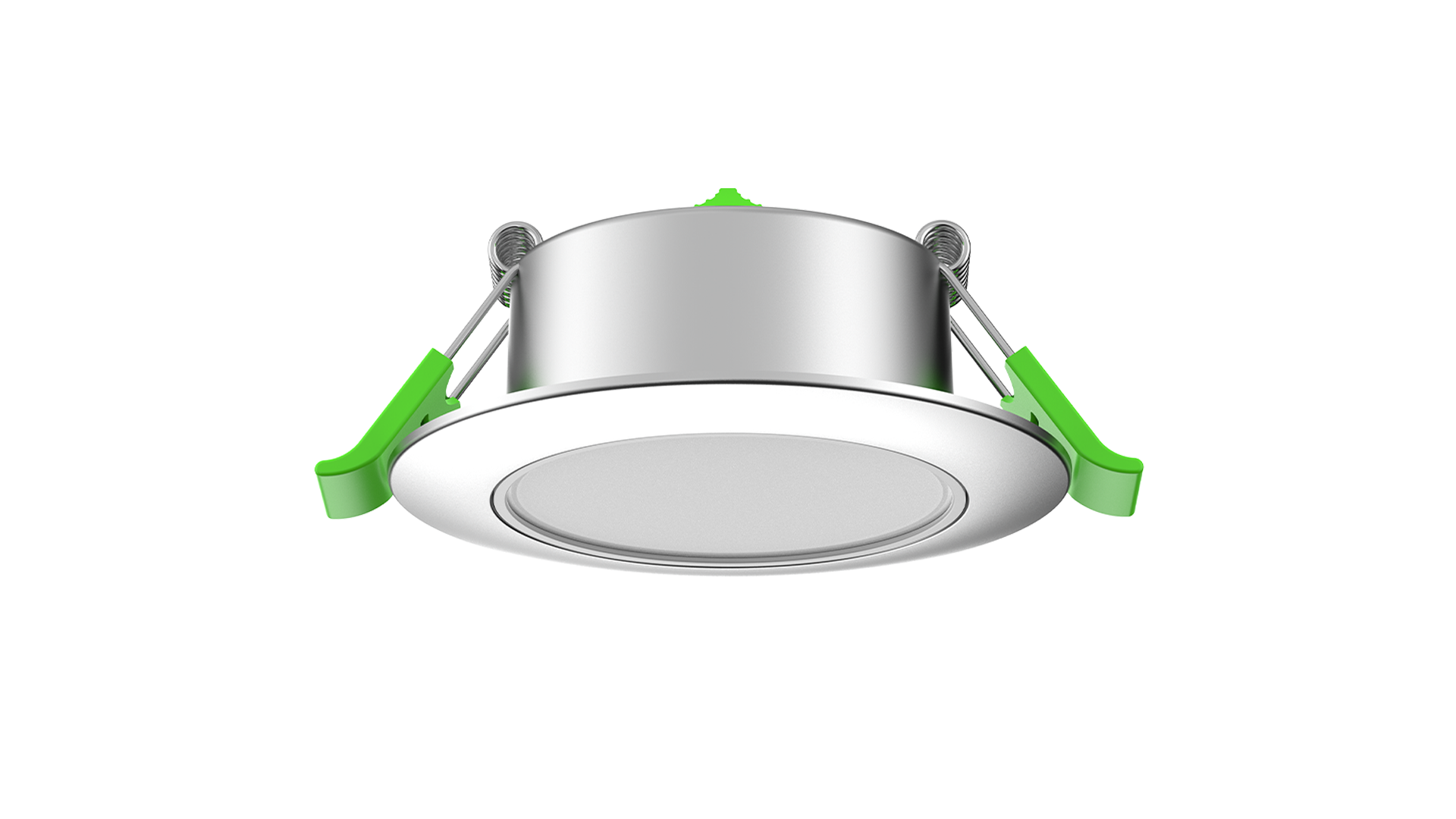

Color: White/Black/Nickel

Cutout Size: 55-68mm

Protection Rating: IP65

Unit / Inner Box: 1

Inner Box Dimensions (L*W*H): 83*37*83mm

Certifications & Compliance

CE / UKCA / IC / IP65

FAQ - IC-Rated Metal LED Downlight

Q1: Why iron housing over aluminum/plastic?
A1: Full-metal iron housing provides superior heat dissipation and durability for continuous commercial use.

Q2: Is this IC-rated for insulated ceiling installations?
A2: Yes. IC-rated for direct contact with insulation, can be covered by thermal materials (fiberglass, rockwool).

Q3: Is this metal downlight for bathrooms/hotels?
A3: IP65 waterproof ensures reliable performance in wet areas like bathrooms, kitchens, and hotel environments.

Q4: CCT switchable on one fixture?
A4: Yes. 3CCT (3000K/4000K/6500K) via one switch, perfect for varied commercial lighting projects.

Q5: Cutout sizes for standard ceilings?
A5: DL-CS20 (55-68mm), fits most residential/commercial ceiling thicknesses.
