Home / Products / SECURITY LIGHT / YA2R/YB2R/YC2R Series / WL-YC2R-015P 15W

Products

(+86)-0574-55003164
15W YC2R-015P 3CCT LED Security Light

WL-YC2R-015P 15W

   FEATURES
  • Wall or ceiling mounted
  • Fully adjustable head
  • Manual override function
  • With PIR sensor
  • RCM CE UKCA
  • 2 years warranty
Contact now Download

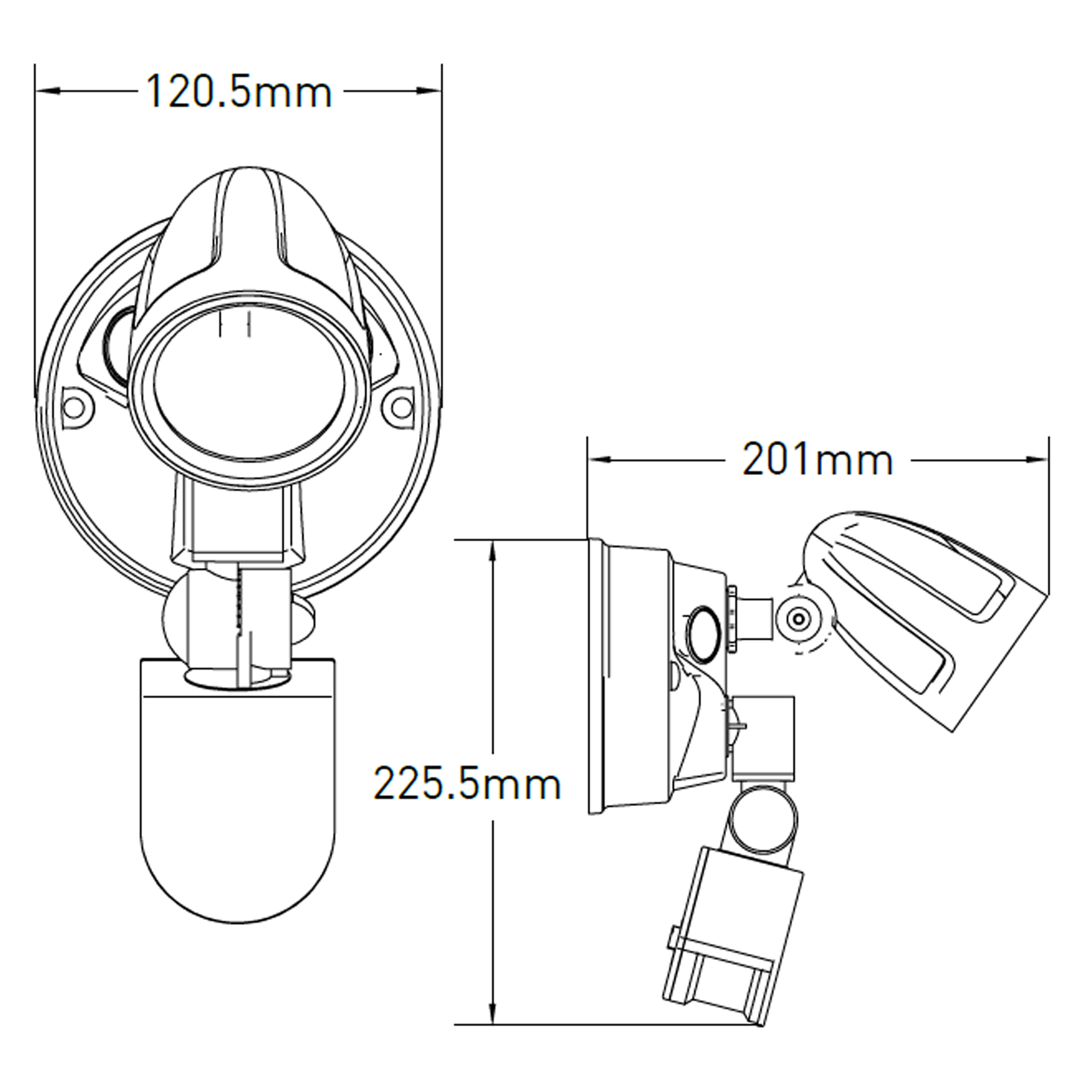

  • 15W YC2R-015P 3CCT LED Security Light_dimension

PRODUCT DESCRIPTION

TECHNICAL DATA
Code Power LED Dim Input CCT Lumen CRI Beam Angle PF PIR Sensor
 Detection Angle
 Detection Brightness
 Detection Distance
 Detection Duration
WL-YC2R-015 15W COB No 220-240V~50/60Hz 3000/4000/6000K 1200lm >80Ra 90° >0.9 Non
 / / / /
WL-YC2R-015P
 15W COB
 No
 220-240V~50/60Hz
 3000/4000/6000K
 1200lm
 >80Ra
 90°
 >0.9
 Available
 160°
 5-2000Lux
 12m max
 7secs-10mins
WL-YC2R-030
 30W COB
 No
 220-240V~50/60Hz
 3000/4000/6000K
 2400lm
 >80Ra
 90°/head
 >0.9
 Non
 / / / /
WL-YC2R-030P
 30W
 COB No
 220-240V~50/60Hz
 3000/4000/6000K
 2400lm
 >80Ra
 90°/head
 >0.9
 Available
 160°
 5-2000Lux
 12m max
 7secs-10mins


CONSTRUCTION
Code Driver
 Body Material Trim Color Weight IP Rating
WL-YC2R-015 Internal
 Die-cast Al Head+PC Base White/Black kg IP54
WL-YC2R-015P
 Internal
 Die-cast Al Head+PC Base
 White/Black
 kg
 IP54
WL-YC2R-030
 Internal
 Die-cast Al Head+PC Base
 White/Black
 kg
 IP54
WL-YC2R-030P
 Internal
 Die-cast Al Head+PC Base
 White/Black
 kg
 IP54


PACKAGING INFORMATION
Code Unit/Inner Box Inner Box Dimensions
(L*W*H)		 Inner Box G.W.  Unit/Masterbox Masterbox Size
(L*W*H)
 Masterbox G.W. Masterbox Volume
WL-YC2R-015 pc mm kg pcs cm kg m³
WL-YC2R-015P
 pc
 mm
 kg
 pcs
 cm
 kg
 m³
WL-YC2R-030
 pc
 mm
 kg
 pcs
 cm
 kg
 m³
WL-YC2R-030P
 pc
 mm
 kg
 pcs
 cm
 kg
 m³
