Home / Products / LED DOWNLIGHT / SQ/SS series / DL-SQ625 8W

Products

(+86)-0574-55003164
image_led_downlight_sq625

DL-SQ625 8W

   FEATURES

  • 75-85mm cutout
  • Dimmable+3CCT
  • Plastic-coated aluminum fitting
  • CE UKCA IP44 IC-Rated
  • 3 years warranty
Contact now Download

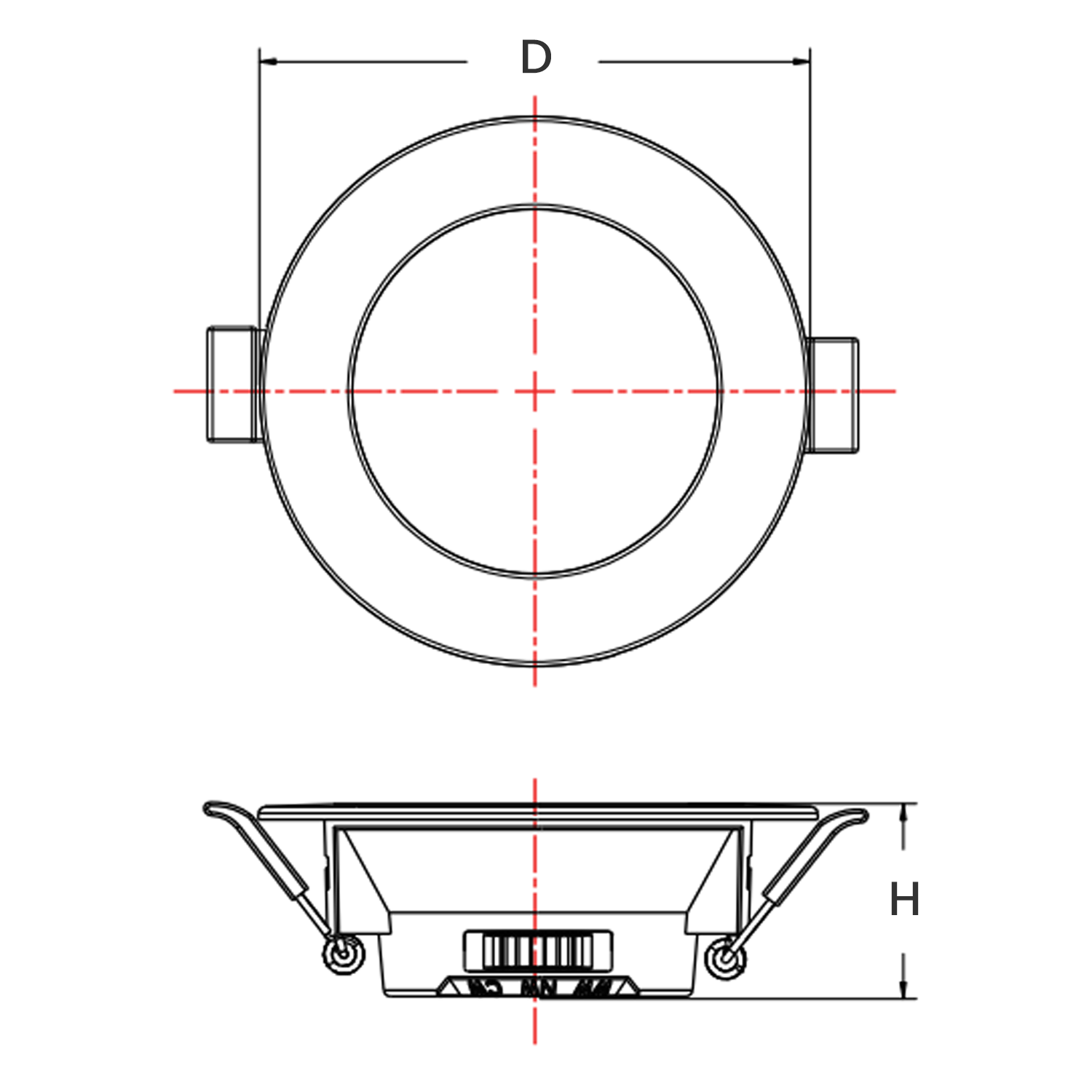

  • image_led_downlight_sq6series_dimension

PRODUCT DESCRIPTION

TECHNICAL DATA

Code Power LED Dim Input CCT Lumen CRI Beam Angle
DL-SQ623-107D3
 7W SMD2835
 Yes
 220-240V~50/60Hz
 3000/4000/6500K
 600lm
 >80Ra
 110°
DL-SQ625-108D3
 8W SMD2835
 Yes
 220-240V~50/60Hz
 3000/4000/6500K
 800lm
 >80Ra
 110°
DL-SQ630-110D3
 10W SMD2835
 Yes
 220-240V~50/60Hz
 3000/4000/6500K
 1000lm
 >80Ra
 110°



CONSTRUCTION

Code Driver
 Body Material Trim Color Dimension Weight Cutout IP Rating
DL-SQ623-107D3
 DOB
 PP+AL+PC  White
 D86*30mm
 66-78mm
 IP44
DL-SQ625-108D3
 DOB
 PP+AL+PC  White
 D95*29mm
 75-85mm
 IP44
DL-SQ630-110D3
 DOB
 PP+AL+PC  White
 D113*29mm
 90-100mm
 IP44



PACKAGING INFORMATION

Code Unit/Inner Box Inner Box Dimensions
(L*W*H)		 Inner Box G.W.  Unit/Masterbox Masterbox Size
(L*W*H)
 Masterbox G.W. Masterbox Volume
DL-SQ623-107D3
DL-SQ625-108D3

DL-SQ630-110D3
