Home / Products / LED DOWNLIGHT / SQ/SS series / DL-SS20W 4W

Products

(+86)-0574-55003164
image_led_downlight_sl-dl-ss20w-104lnd3

DL-SS20W 4W

   FEATURES

  • 2.0inch with 55mm cutout
  • 3000/6500K
  • Slim with only 30mm height
  • CE UKCA IP44
  • 2 years warranty
Contact now Download

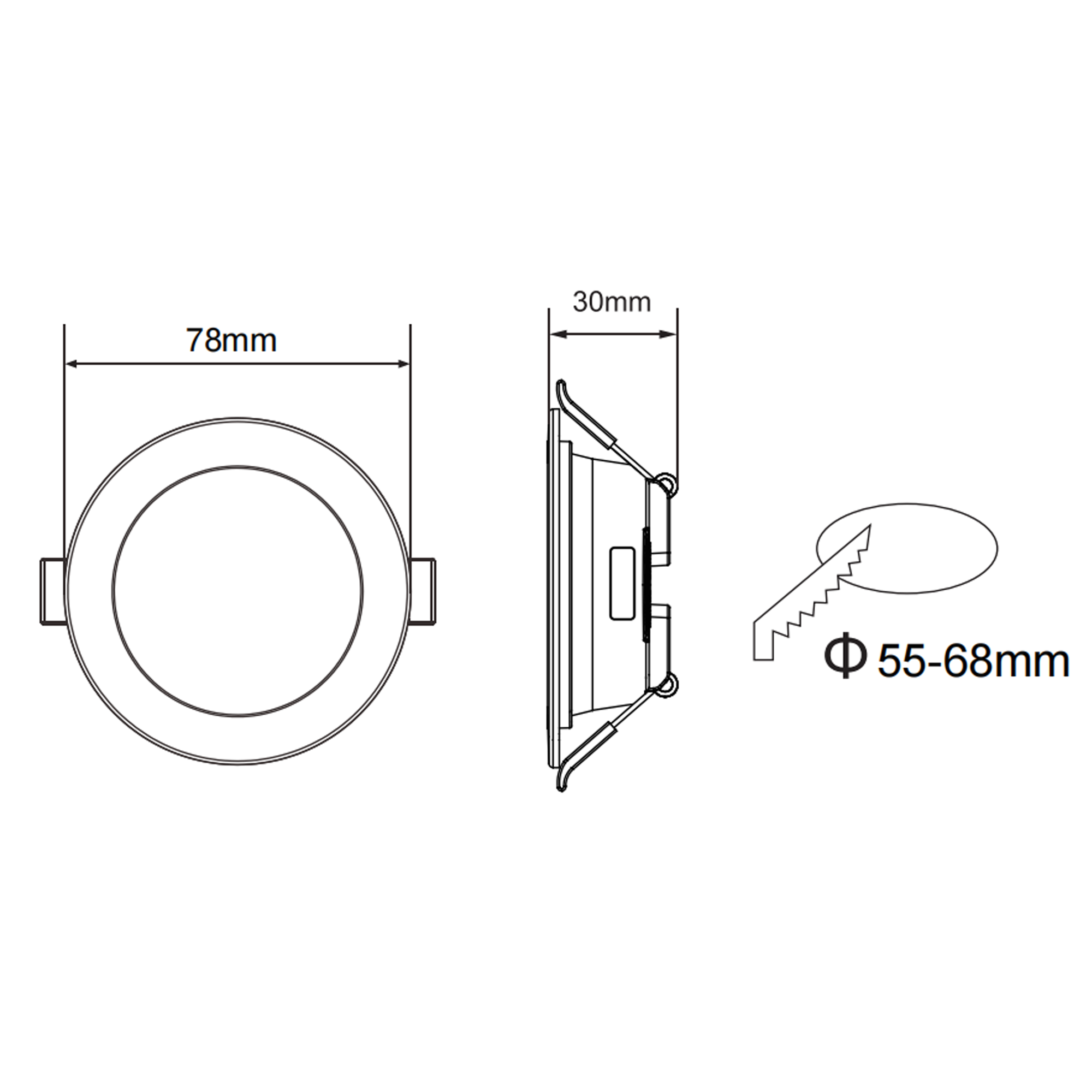

  • image_led_downlight_sl-dl-ss20w-104lnd3_dimension

PRODUCT DESCRIPTION

TECHNICAL DATA

Code Power LED Dim Input CCT Lumen CRI Beam Angle PF
DL-SS20W-104LND3  4W SMD2835 No 220-240V~50/60Hz 3000/6500K 280lm >80Ra 120° >0.9
DL-SS20-104LND3 4W SMD2835 Yes 220-240V~50/60Hz 3000/4000/6500K 280/320/300lm >80Ra 110° >0.9
DL-SS25-105LND3
 5W SMD2835
 Yes
 220-240V~50/60Hz
 3000/4000/6500K
 350/400/350lm
 >80Ra
 110°
 >0.9
DL-SS30-107LND3
 7W SMD2835
 Yes
 220-240V~50/60Hz
 3000/4000/6500K
 500/600/550lm
 >80Ra
 110°
 >0.9
DL-SS40-110LND3
 10W SMD2835
 Yes
 220-240V~50/60Hz
 3000/4000/6500K
 750/850/800lm
 >80Ra
 110°
 >0.9
DL-SS60-115LND3
 15W
 SMD2835
 Yes
 220-240V~50/60Hz
 3000/4000/6500K
 1100/1300/1200lm
 >80Ra
 110°
 >0.9
DL-SS80-122LND3
 22W SMD2835
 Yes
 220-240V~50/60Hz
 3000/4000/6500K
 1700/1900/1800lm
 >80Ra
 110°
 >0.9



CONSTRUCTION

Code Driver
 Body Material Trim Color Dimension Weight Cutout IP Rating
DL-SS20W-104LND3 DOB
 Polypropylene White/Black/Nickel D78*H30mm
 0.042kg 55-68mm IP44
DL-SS20-104LND3 DOB
 Polypropylene White/Black/Nickel D78*H30mm
 0.042kg 55-68mm IP44
DL-SS25-105LND3
 DOB
 Polypropylene
 White/Black/Nickel
 D94.5*H31mm
 0.051kg(WH)/0.062kg(NK)
 75-85mm
 IP44
DL-SS30-107LND3
 DOB
 Polypropylene
 White/Black/Nickel
 D113*H31mm
 0.066kg(WH)/0.080kg(NK)
 90-100mm
 IP44
DL-SS40-110LND3
 DOB
 Polypropylene
 White/Black/Nickel
 D148*H31mm
 0.098kg(WH)/0.126kg(NK)
 125-135mm
 IP44
DL-SS60-115LND3
 DOB
 Polypropylene
 White/Black/Nickel
 D175*H32mm
 0.130kg  145-165mm
 IP44
DL-SS80-122LND3
 DOB
 Polypropylene
 White/Black/Nickel
 D220*H32mm
 0.203kg
 185-210mm
 IP44



PACKAGING INFORMATION

Code Unit/Inner Box Inner Box Dimensions
(L*W*H)		 Inner Box G.W.  Unit/Masterbox Masterbox Size
(L*W*H)
 Masterbox G.W. Masterbox Volume
DL-SS20W-104LND3 6pcs 185x95x90mm   240pcs 48x40.5x39cm   0.076m³
DL-SS20-104LND3 1pc 83*40*83mm 0.055kg(WH)/0.066kg(NK) 150pcs 44.5*44.5*28.5cm 8.95kg(WH)/10.60kg(NK) 0.056m³
DL-SS25-105LND3
 1pc
 100*36*100mm 0.073kg(WH)/0.084kg(NK) 96pcs 42.5*33*32.5cm 7.71kg(WH)/08.76kg(NK) 0.046m³
DL-SS30-107LND3
 1pc
 118*36*118mm 0.091kg(WH)/0.105kg(NK) 96pcs 49.5*37.5*33.5cm
 9.54kg(WH)/10.88kg(NK) 0.061m³
DL-SS40-110LND3
 1pc
 152*36*152mm 0.126kg(WH)/0.154kg(NK) 54pcs 47.5*37*32.5cm 7.50kg(WH)/9.02kg(NK) 0.057m³
DL-SS60-115LND3
 1pc
 180*37*180mm
 0.172kg
 36pcs
 40*38*38cm
 6.89kg
 0.058m³
DL-SS80-122LND3
 1pc
 223*37*225mm
 0.263kg
 24pcs 46.5*46*26cm
 7.01kg
 0.056m³
