9w SO30T-109D3 Anti-Glare Tiltable 3CCT LED Downlight

DL-SO30T-109D3 9W

   FEATURES

  • 3.0inch with 90mm cutout
  • New COB technology with 3CCT+Dimmable
  • Tilted face: 0°-20° adjustable
  • Trailing edge dimmable
  • Optional surface ring
  • IC-4 RCM CE UKCA
  • 3 years warranty
Contact now Download

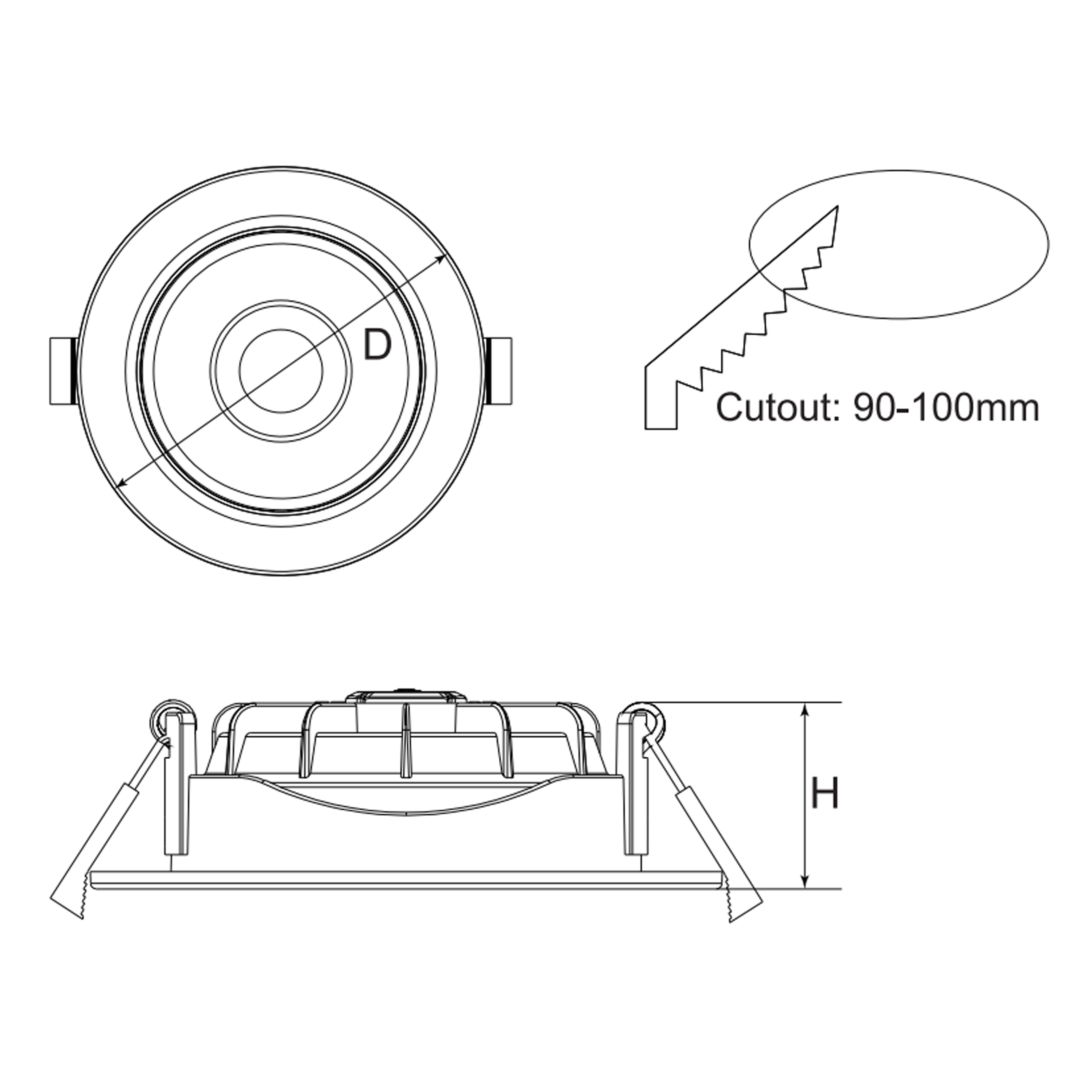

  • 9w SO30T-109D3 Anti-Glare Tiltable 3CCT LED Downlight_dimension

PRODUCT DESCRIPTION

TECHNICAL DATA
Code Power LED Dim Input CCT Lumen CRI Beam Angle PF
DL-SO30T-109D3
 9W COB
 Yes
 220-240V~50/60Hz
 3000/4000/5700K
 630/720/680lm
 >80Ra
 60°
 >0.9
DL-SO30T-S109D3
 9W
 SMD2835
 Yes
 220-240V~50/60Hz
 3000-5700K & RGB
 630/720/680lm
 >80Ra
 110°
 >0.9


CONSTRUCTION
Code Driver
 Body Material Trim Color Dimension Weight Cutout IP Rating Tilt Angle
DL-SO30T-109D3
 External
 Nylon+Aluminum
 White
 D110*H33mm
 0.213kg
 90-100mm
 IP20
 20°
DL-SO30T-S109D3
 External
 Nylon+Aluminum
 White
 D110*H33mm
 0.217kg  90-100mm
 IP20
 20°


PACKAGING INFORMATION
Code Unit/Inner Box Inner Box Dimensions
(L*W*H)		 Inner Box G.W.  Unit/Masterbox Masterbox Size
(L*W*H)
 Masterbox G.W. Masterbox Volume
DL-SO30T-109D3
 1pcs
 118*118*78mm 0.253kg 40pcs 49.5*42*26cm kg 0.054m³
DL-SO30T-S109D3
 1pcs
 118*118*78mm
 0.257kg
 40pcs
 49.5*42*26cm
 kg
 0.054m³
