DL-SP25D-F 8W

   FEATURES

  • 2.5inch with 68mm cutout
  • Metallic Fixed trim
  • 850lm brightness
  • Triac dimmable+3CCT
  • Anti-Glare
  • RCM CE UKCA IP44
  • 2 years warranty
Contact now Download

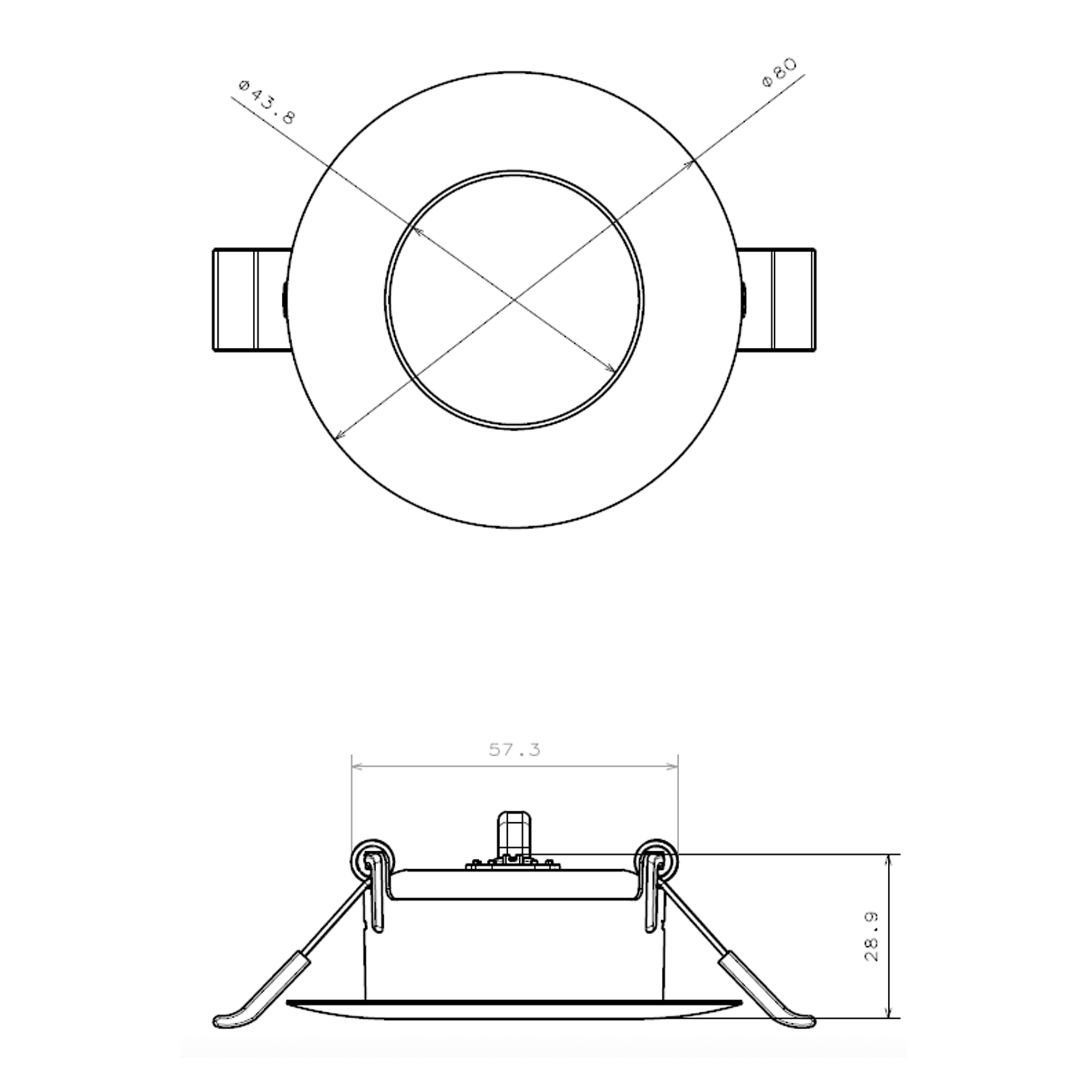

  • image_led_downlight_sp25d-f_dimension

PRODUCT DESCRIPTION

TECHNICAL DATA

Code Power LED Dim Input CCT Lumen CRI Beam Angle PF
DL-SP25D-F 8W SMD2835
 Yes(Triac)
 220-240V~50/60Hz
 3000/4000/6500K
 850lm
 >80Ra
 110°
 >0.7
DL-SP25D-G 8W SMD2835
 Yes(Triac)
 220-240V~50/60Hz
 3000/4000/6500K
 850lm
 >80Ra
 110°
 >0.7



CONSTRUCTION

Code Driver
 Body Material Trim Color Dimension Weight Cutout IP Rating
DL-SP25D-F DOB
 PA+Al+PC White/Black/Nickel
 D80*H29mm
 0.12kg
 60-70mm
 IP44
DL-SP25D-G DOB
 PA+Al+PC White/Black/Nickel
 D83*H27.7mm
 0.125kg
 68-75mm
 IP20



PACKAGING INFORMATION

Code Unit/Inner Box Inner Box Dimensions
(L*W*H)		 Inner Box G.W.  Unit/Masterbox Masterbox Size
(L*W*H)
 Masterbox G.W. Masterbox Volume
DL-SP25D-F pc
 mm kg pcs cm kg ㎡
DL-SP25D-G pc
 mm kg pcs cm kg ㎡
