8w SF30 3CCT Dimmable Slim LED Downlight

DL-SF30-108D3 8W

   FEATURES

  • 3.0inch with 90-100mm cutout
  • Dimmable+3CCT
  • Slim design with only 32.4mm height
  • Trim easy replaceable
  • SAA CE IP44
  • 2 years warranty
Contact now Download

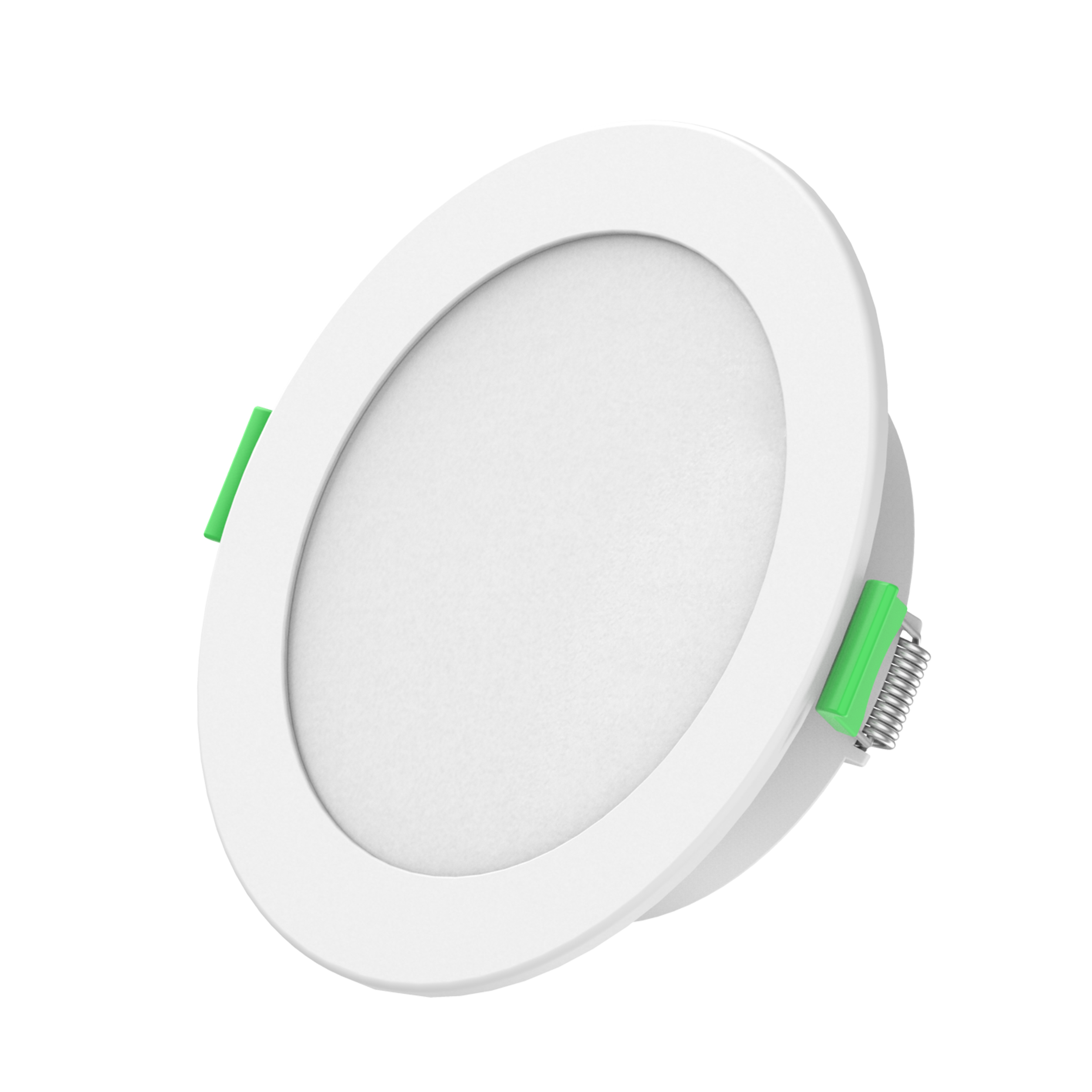

  • 8w SF30 3CCT Dimmable Slim LED Downlight_sideview

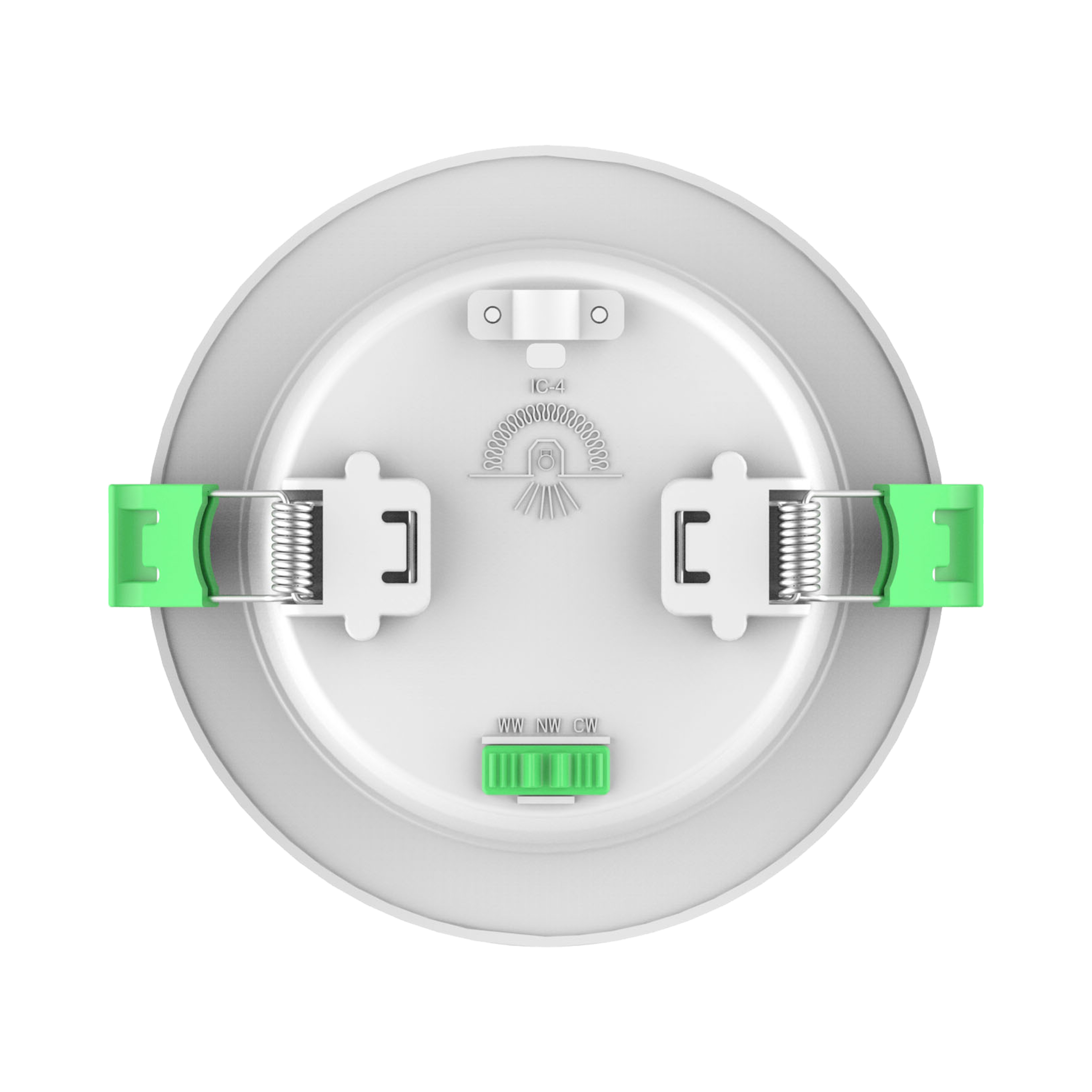

  • 8w SF30 3CCT Dimmable Slim LED Downlight_backview

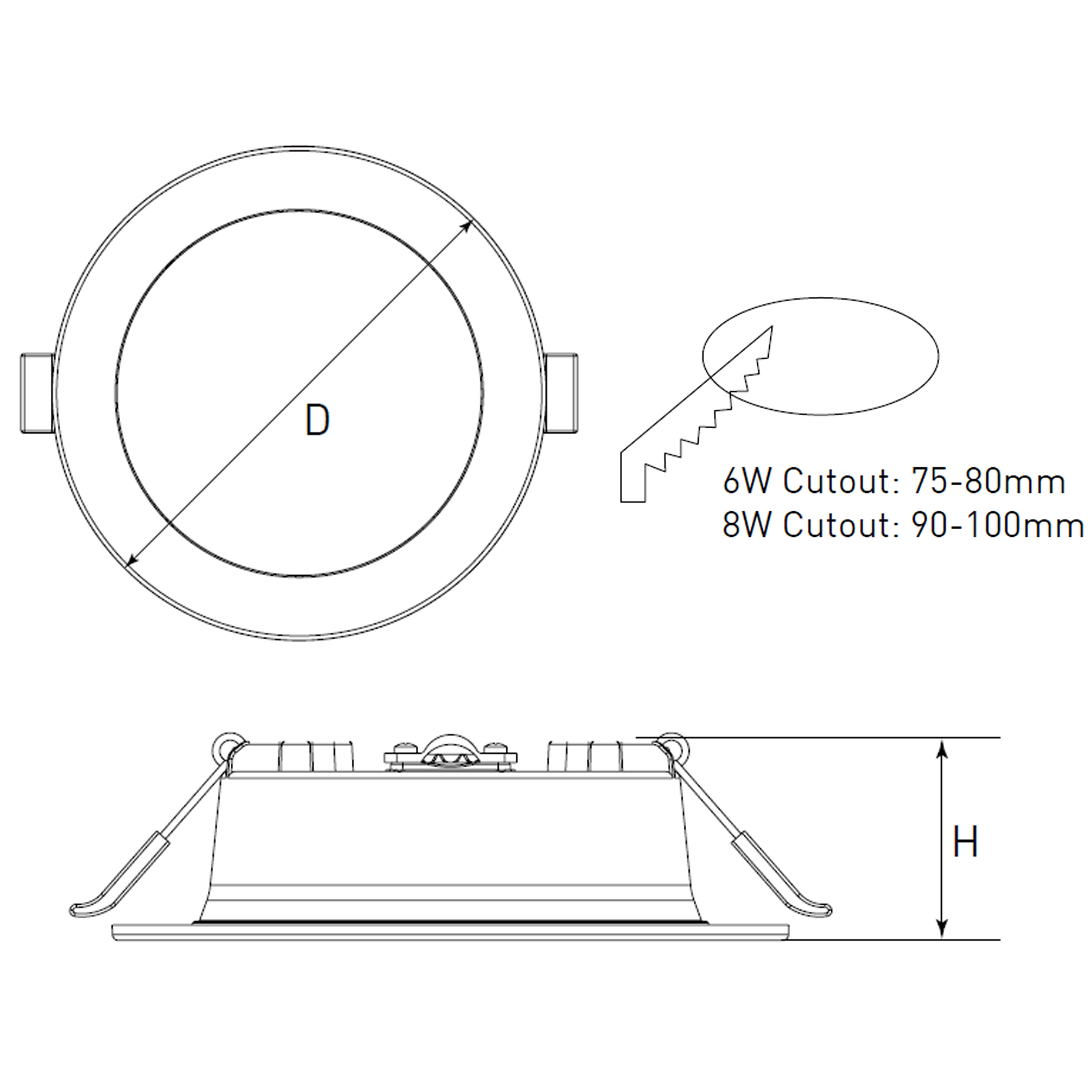

  • 8w SF30 3CCT Dimmable Slim LED Downlight_dimension-1

PRODUCT DESCRIPTION

TECHNICAL DATA
Code Power LED Dim Input CCT Lumen CRI Beam Angle PF
DL-SF25-106D3
 6W
 SMD2835
 Yes(Triac)
 220-240V~50/60Hz
 3000/4000/6500K
 480lm >80Ra
 110°
 >0.7
DL-SF30-108D3 8W SMD2835 Yes(Triac) 220-240V~50/60Hz 3000/4000/6500K 640lm >80Ra 110° >0.7


CONSTRUCTION
Code Driver
 Body Material Trim Color Dimension Weight Cutout IP Rating
DL-SF25-106D3
 DOB
 PA+PC
 White/Nickel
 D100*H32mm
 kg
 75-80mm
 IP44
DL-SF30-108D3 DOB
 PA+PC White/Nickel D113*H32.4mm
 kg 90-100mm IP44


PACKAGING INFORMATION
Code Unit/Inner Box Inner Box Dimensions
(L*W*H)		 Inner Box G.W.  Unit/Masterbox Masterbox Size
(L*W*H)
 Masterbox G.W. Masterbox Volume
DL-SF25-106D3
 1pc
 mm
 kg
 pcs
 cm
 kg
 m³
DL-SF30-108D3 1pc mm kg pcs cm kg m³
