image_led_shoplight_tplc-1

TPLC

   FEATURES

  • 3 Wattage Tunable
  • Interconnectable
  • 3CCT
  • Quick Connection Design
  • ETL IP65
  • 2 years warranty
Contact now Download

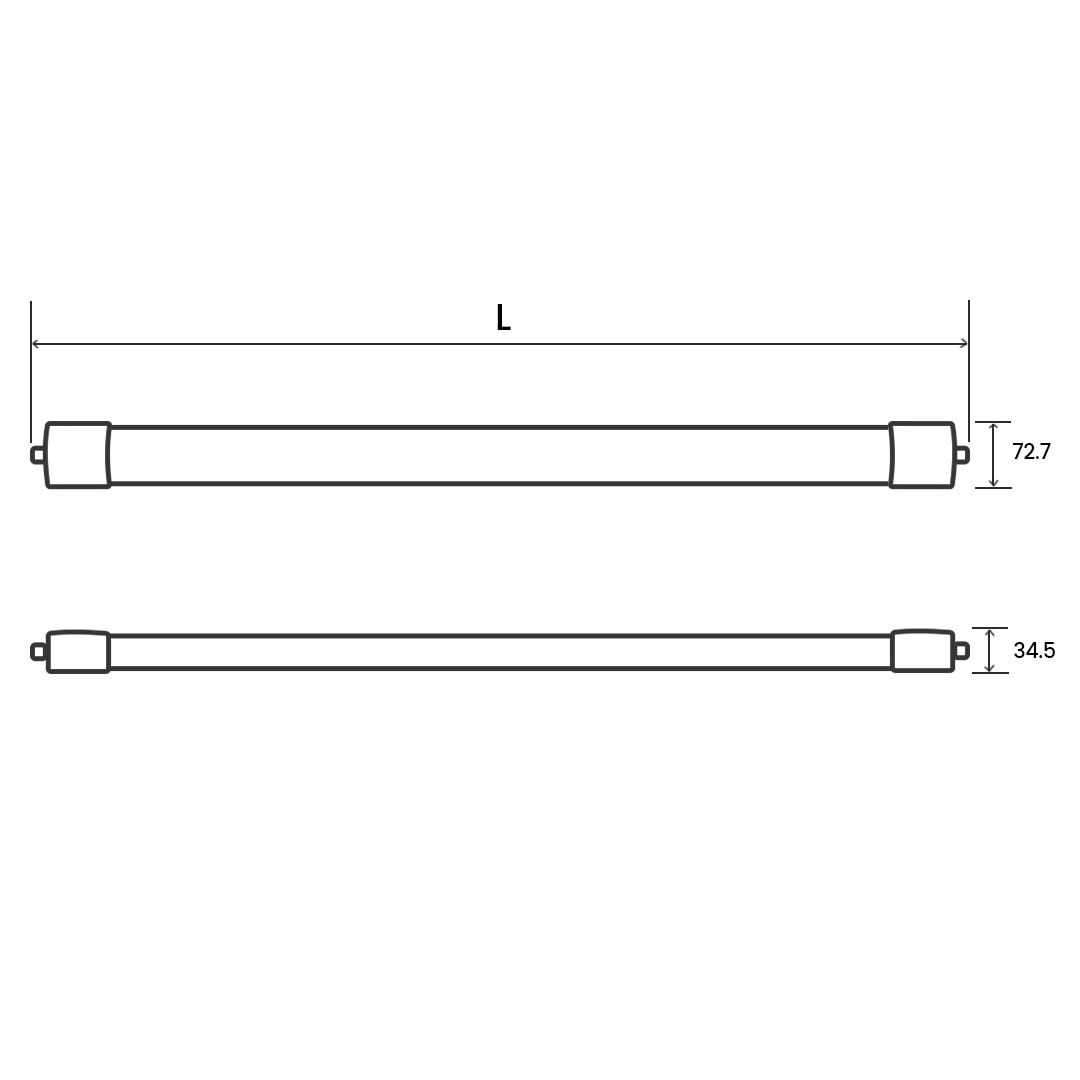

  • image_led_shoplight_tplc_dimension

PRODUCT DESCRIPTION

TECHNICAL DATA

Code Power LED Input CCT Lumen CRI Beam Angle PF
TPLC-124N3-3WT 12/18/24W SMD2835 220-240V~50/60Hz 3000/4000/6500K

1320/1980/2640lm

 >80Ra 120° >0.9
TPLC-136N3-3WT 18/28/36W SMD2835 220-240V~50/60Hz 3000/4000/6500K

1980/3080/3960lm

 >80Ra 120° >0.9
TPLC-148N3-3WT 24/36/48W SMD2835 220-240V~50/60Hz 3000/4000/6500K

2640/3960/5280lm

 >80Ra 120° >0.9
TPLC-160N3-3WT 30/48/60W SMD2835 220-240V~50/60Hz 3000/4000/6500K

3300/5280/6600lm

 >80Ra 120° >0.9


CONSTRUCTION

Code Body Material Color Dimension Weight IP Rating Mount
TPLC-124N3-3WT PC White 590(L)x72.7(W)x34.5(H)mm kg IP65 Ceiling
TPLC-136N3-3WT PC White 890(L)x72.7(W)x34.5(H)mm kg IP65 Ceiling
TPLC-148N3-3WT PC White 1160(L)x72.7(W)x34.5(H)mm kg IP65 Ceiling
TPLC-160N3-3WT PC White 1490(L)x72.7(W)x34.5(H)mm kg IP65 Ceiling



PACKAGING INFORMATION

Code Unit/Inner Box Inner Box Dimensions
(L*W*H)		 Inner Box G.W.  Unit/Masterbox Masterbox Size
(L*W*H)
 Masterbox G.W. Masterbox Volume
TPLC-124N3-3WT pc mm kg pcs cm kg m³
TPLC-136N3-3WT pc mm kg pcs cm kg m³
TPLC-148N3-3WT pc mm kg pcs cm kg m³
TPLC-160N3-3WT pc mm kg pcs cm kg m³
