3W OT-01B-2D3 LED Solar Spike Light

OT-01B-2D3 3W

   FEATURES
  • Ground/Wall mounted
  • Adjustable heads
  • 3CCT + Dimmable
  • Waterproof IP54
  • Solar energy/USB chargeable
Contact now Download
  • 3W OT-01B-2D3 LED Solar Spike Light_backview

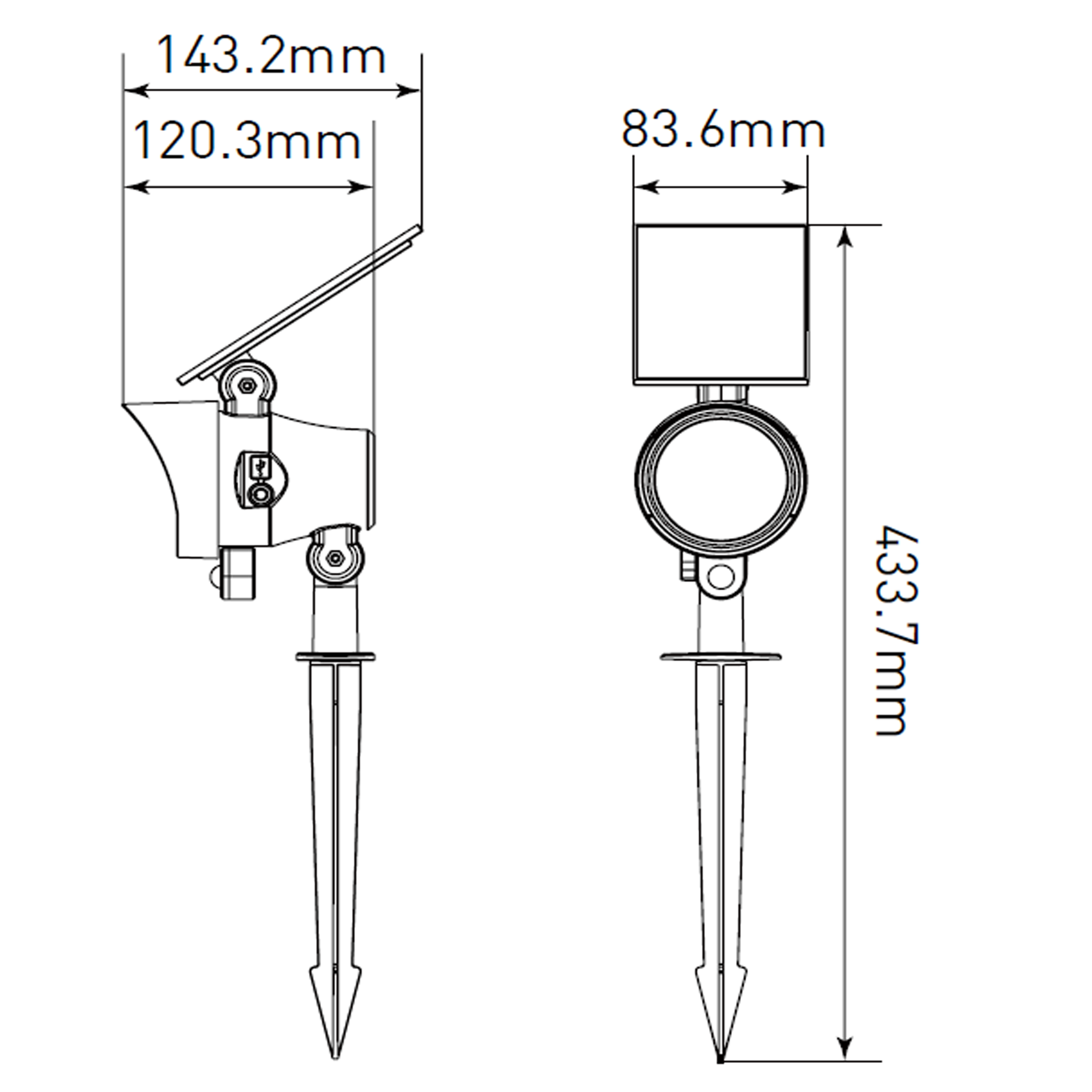

  • 3W OT-01B-2D3 LED Solar Spike Light_dimension

PRODUCT DESCRIPTION

TECHNICAL DATA
Code Power LED Dim Solar Panel Battery
 CCT Lumen CRI Beam Angle Detection Angle Detection Duration
 Detection Distance
 Charging Time
 Duration Time
OT-01A-2D3 1.5W SMD2835 Yes 5.5VDC 3.7V 1800mAh
 3000/4000/6500K 120lm >80Ra 30° / / / 8-10h by solar energy
3.5h by USB(Type-C)		 6.5h
OT-01A-2R3
 1.5W
 SMD2835
 No
 5.5VDC
 3.7V 1800mAh
 RGB 120lm
 >80Ra
 30°
 /
 / /
 8-10h by solar energy
3.5h by USB(Type-C)
 6.5h
OT-01B-2D3
 3W SMD2835
 Yes 5.5VDC
 3.7V 1800mAh
 3000/4000/6500K
 240lm >80Ra
 90°
 120°
 30s 0-4m 8-10h by solar energy
3.5h by USB(Type-C)
 4h
OT-01B-2R3
 3W SMD2835
 No 5.5VDC
 3.7V 1800mAh
 RGB
 240lm >80Ra
 90°
 120°
 30s 0-4m 8-10h by solar energy
3.5h by USB(Type-C)
 4h


CONSTRUCTION
Code Body Material Trim Color Weight IP Rating Mount
OT-01A-2D3 Plastic Black 0.255kg IP54 Ground/Wall
OT-01A-2R3
 Plastic
 Black
 0.255kg
 IP54
 Ground/Wall
OT-01B-2D3
 Plastic
 Black
 kg IP54
 Ground/Wall
OT-01B-2R3
 Plastic
 Black
 kg IP54
 Ground/Wall


PACKAGING INFORMATION
Code Unit/Inner Box Inner Box Dimensions
(L*W*H)		 Inner Box G.W.  Unit/Masterbox Masterbox Size
(L*W*H)
 Masterbox G.W. Masterbox Volume
OT-01A-2D3 2pcs 275*140*90mm 0.622kg 32pcs 56.5*38.5*30cm 10.75kg 0.065m³
OT-01A-2R3
 2pcs
 275*140*90mm
 0.622kg
 32pcs
 56.5*38.5*30cm
 10.75kg
 0.065m³
OT-01B-2D3
 2pcs
 mm kg pcs cm kg m³
OT-01B-2R3
 2pcs
 mm kg pcs cm kg m³
