40w YDS-240P-D4 US Remote Control High Lumen Output Security Light

WL-YDS-240P-D4 40W US

   FEATURES
  • Voltage: AC110-130V
  • Wall mounted
  • Adjustable heads
  • Dimmable+CCT
  • Three models:  AUTO, D2D, ON TIME
  • With PIR sensor
  • ETL FCC
  • 2 years warranty
Contact now Download

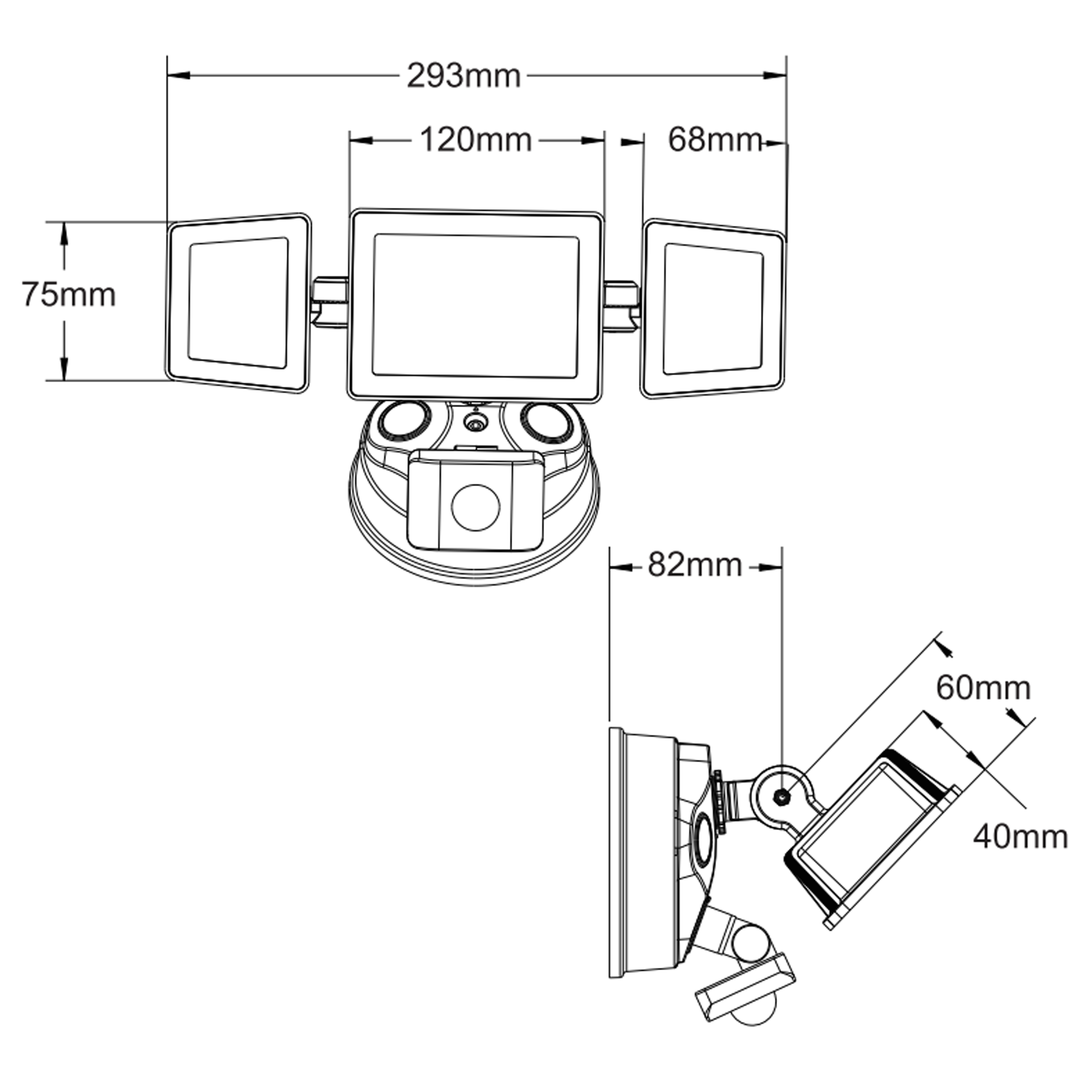

  • 40w YDS-240P-D4 US Remote Control High Lumen Output Security Light_dimension

PRODUCT DESCRIPTION

TECHNICAL DATA

Code Power LED Dim Input CCT Lumen CRI Beam Angle PF PIR Sensor Detection Angle
 Detection Brightness
 Detection Distance
 Detection Duration
WL-YDS-240
 40W SMD2835
 No
 110-130V~60Hz
 3000/4000/6500K
 3400-3800lm(BK)/3800-4400lm(WH)
 >80Ra
 90°
 >0.9
 Non / / / /
WL-YDS-240P 40W
 SMD2835 No 110-130V~60Hz 3000/4000/6500K 3400-3800lm(BK)/3800-4400lm(WH) >80Ra
 90°
 >0.9
 Available 140° 5-2000Lux 10m max 3secs-8mins
WL-YDS-240P-D4
 40W
 SMD2835
 Yes
 110-130V~60Hz
 3000-6500K
 3400-3800lm(BK)/3800-4400lm(WH)
 >80Ra
 90°
 >0.9
 Available
 140°
 5-2000Lux 10m max
 3secs-8mins
WL-YDS-240P-D5
 40W
 SMD2835
 Yes
 110-130V~60Hz
 3000-6500K
 3400-3800lm(BK)/3800-4400lm(WH)
 >80Ra
 90°
 >0.9
 Available
 140°
 5-2000Lux
 10m max
 3secs-8mins



CONSTRUCTION

Code Driver Body Material Trim Color Weight IP Rating
WL-YDS-240
 Internal
 Plastic+Aluminum
 White/Black
 kg
 IP54
WL-YDS-240P Internal
 Plastic+Aluminum White/Black kg
 IP54
WL-YDS-240P-D4
 Internal
 Plastic+Aluminum
 White/Black
 0.595kg
 IP54
WL-YDS-240P-D5
 Internal
 Plastic+Aluminum
 White/Black
 kg
 IP54



PACKAGING INFORMATION

Code Unit/Inner Box Inner Box Dimensions
(L*W*H)		 Inner Box G.W.  Unit/Masterbox Masterbox Size
(L*W*H)
 Masterbox G.W. Masterbox Volume
WL-YDS-240
 1pc
 mm
 kg
 pcs
 cm
 kg
 m³
WL-YDS-240P 1pc
 207*182*150mm
 kg
 12pcs
 47*43*38.5cm
 kg
 0.078m³
WL-YDS-240P-D4
 1pc
 207*182*150mm
 0.810kg
 12pcs
 47*43*38.5cm
 10.62kg
 0.078m³
WL-YDS-240P-D5
 1pc
 mm
 kg
 pcs
 cm
 kg
 m³
