SL-DL-SH225-108D3 8W Recessed TRIM

Trim: easy replaceable
Power: 8W
2.5inch with 70mm-85 cutout
Lumen: 680lm
Beam angle: 120°
Color temp.:  3000K/4000K/5700K
Body material: Plastic+Aluminium
Size: Φ95.2*34.7mm

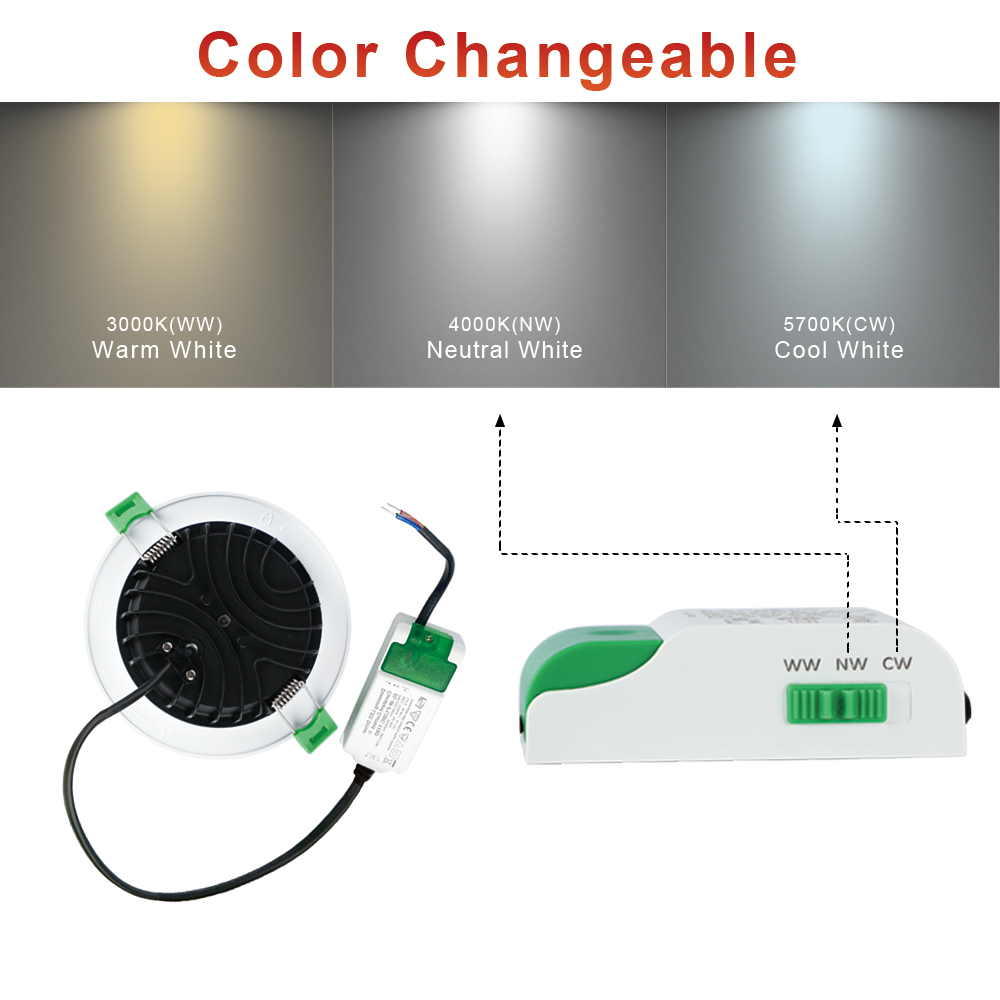

CCT changeable and dimmable through a switch on external driver
SAA RCM CE RoHS IC-4 IP44
3 years warranty
Contact now

PRODUCT DESCRIPTION

Model SL-DL-SH225-108D3
Input Voltage AC220-240V
Dimmable or not Dimmable
Lumen 680lm
Color temperature 3000K/4000K/5700K changeable
LED type SMD2835
LED Quatity 20
Beam angle 120°
Driver External
CRI(RA) 80
PF >0.9
Product size Φ95.2*34.7mm
Cutout hole 70-85mm
Material Plastic+AL
Working temperature -20℃~45℃
Suface color white/black/nickel
Certificate SAA CE
IP Rate IP44
Warranty 3 years
Replaceable TRIM flat/recessed
Led Type SMD/COB
