PRODUCT DESCRIPTION

Power: 10W

3.0inch with 90mm cutout

Lumen: 800lm

Beam angle: 120°

CCT: 3000K/4000K/5700K changeable
Color: wh/nk

Body material: PBT+Aluminium

Size: Φ113.2*58.7mm

Triac dimmable

SAA RCM CE RoHS IC-F IP44

3 years warranty

360° display is helpful for you to get an image of all-around product, and help you to find your Object quickly and conveniently.

Power

10W

Model

SA330-110D3

Input Voltage

AC220-240V

Dimmable or Not

Dim

Lumen

800lm

Color temperature

3000/4000/5700K

LED type

SMD2835

LED Quantity

10*1+10*1

Beam angle

120°

Driver

in-built driver

CRI(RA)

>82

>0.9

Product size

Φ113.2*58.7mm

Cutout hole

90-100mm

Material

Nylon+AL

Working termperature

-20℃~45℃

Surface color

White/Nickel

Certificate

SAA CE

IP44

Warranty

3 years

Inner box size

125*121*67mm

Pieces/ CTN

Outer carton size

39.5*36*26.5cm

G.W./CTN (kg)

8.8

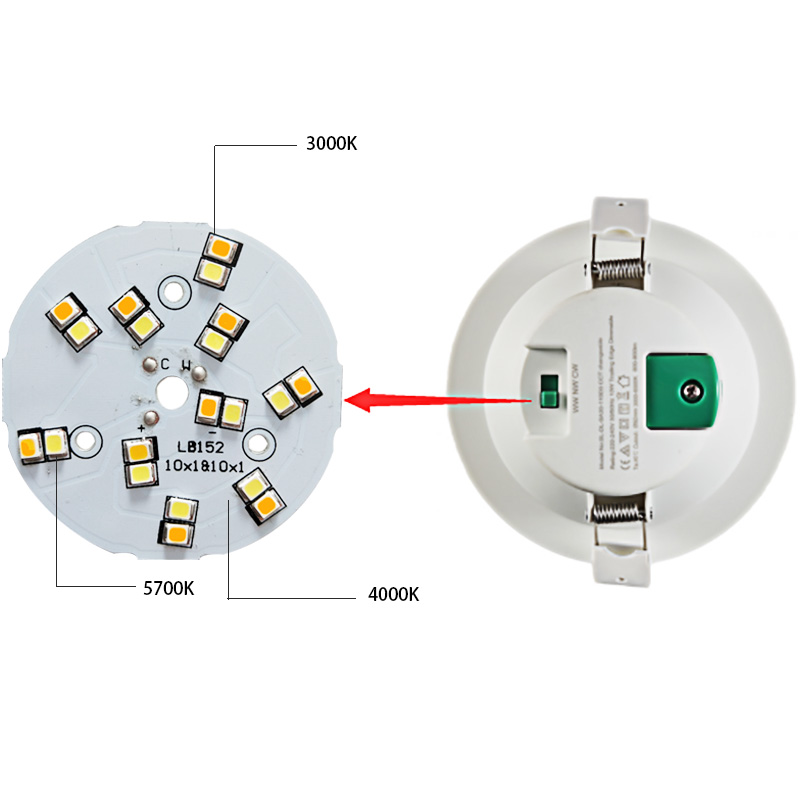

1. CCT-change

3000K/4000K/5700K CCT changeable with 2 rows of SMD by the slide switch on the back of the lamp.

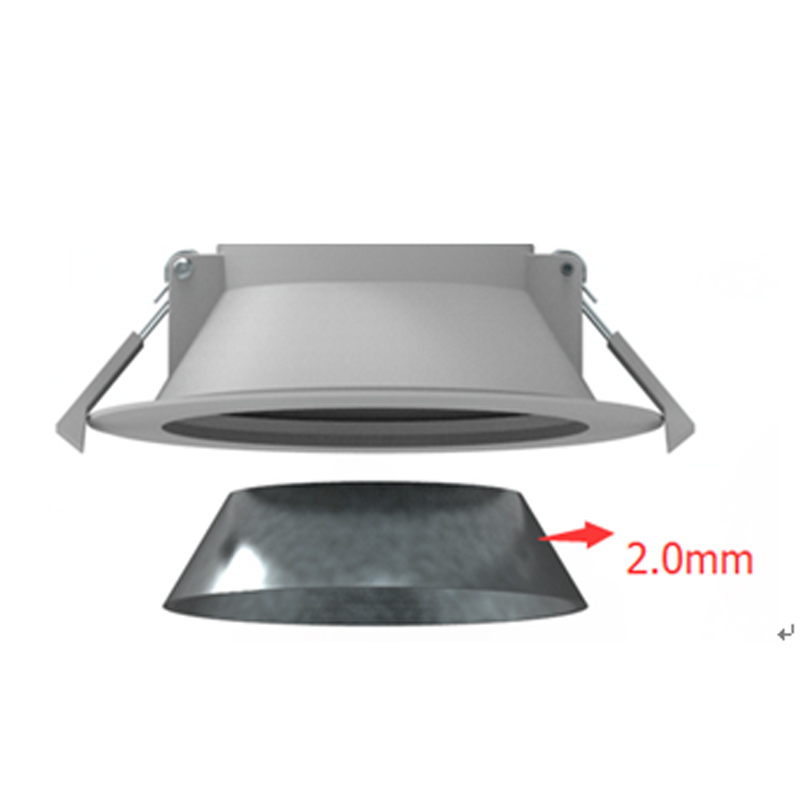

2.Plastic+AL structure

The structure is Plastic with Aluminium inside. It cut down cost and Aluminium heat sink help in good heat dissipation.

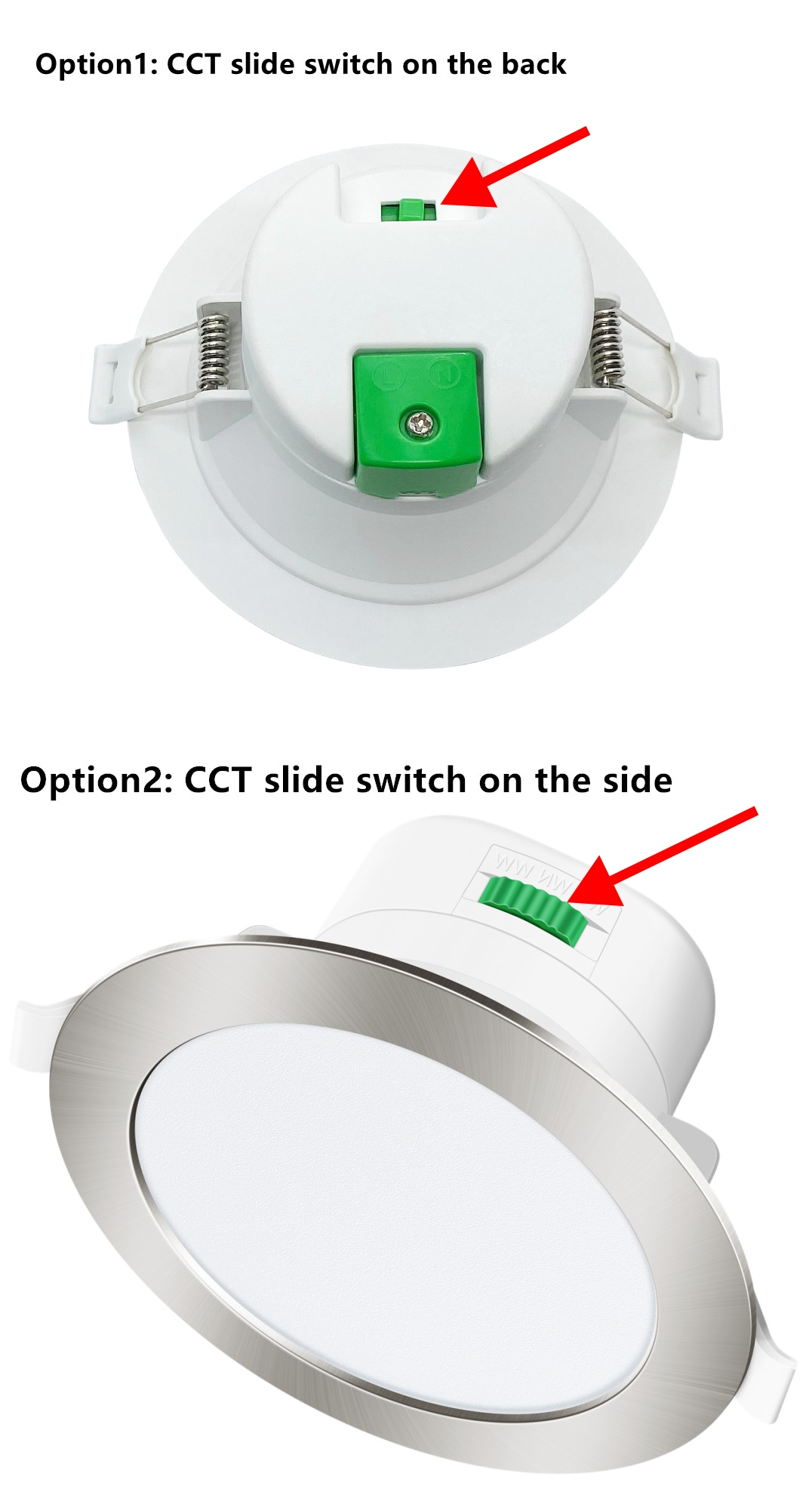

3. Two options of CCT slide switch

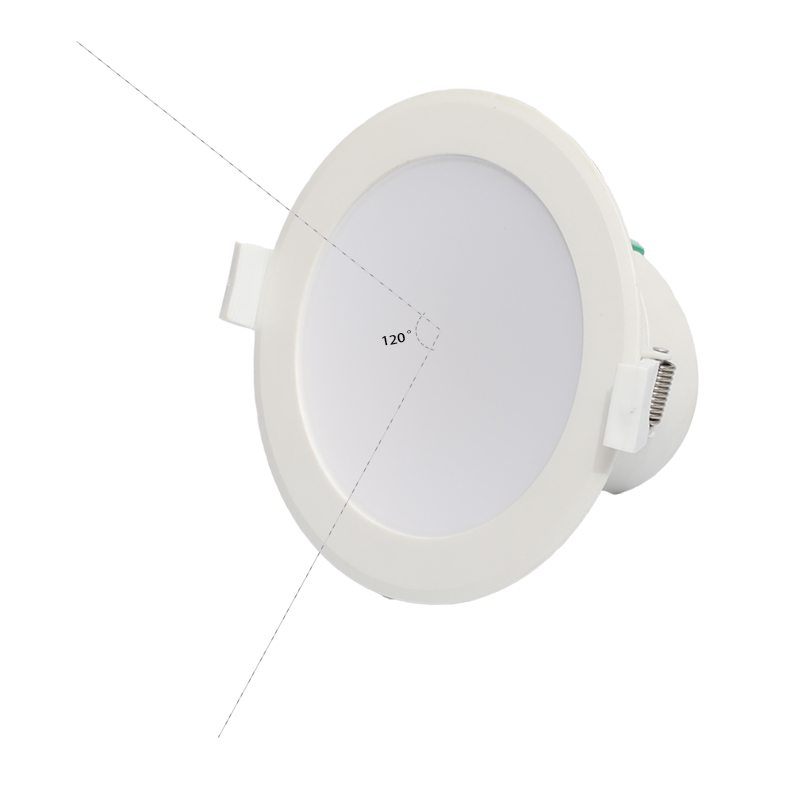

4.Beam angle

Beam angle is large: 120°for wider lighting.

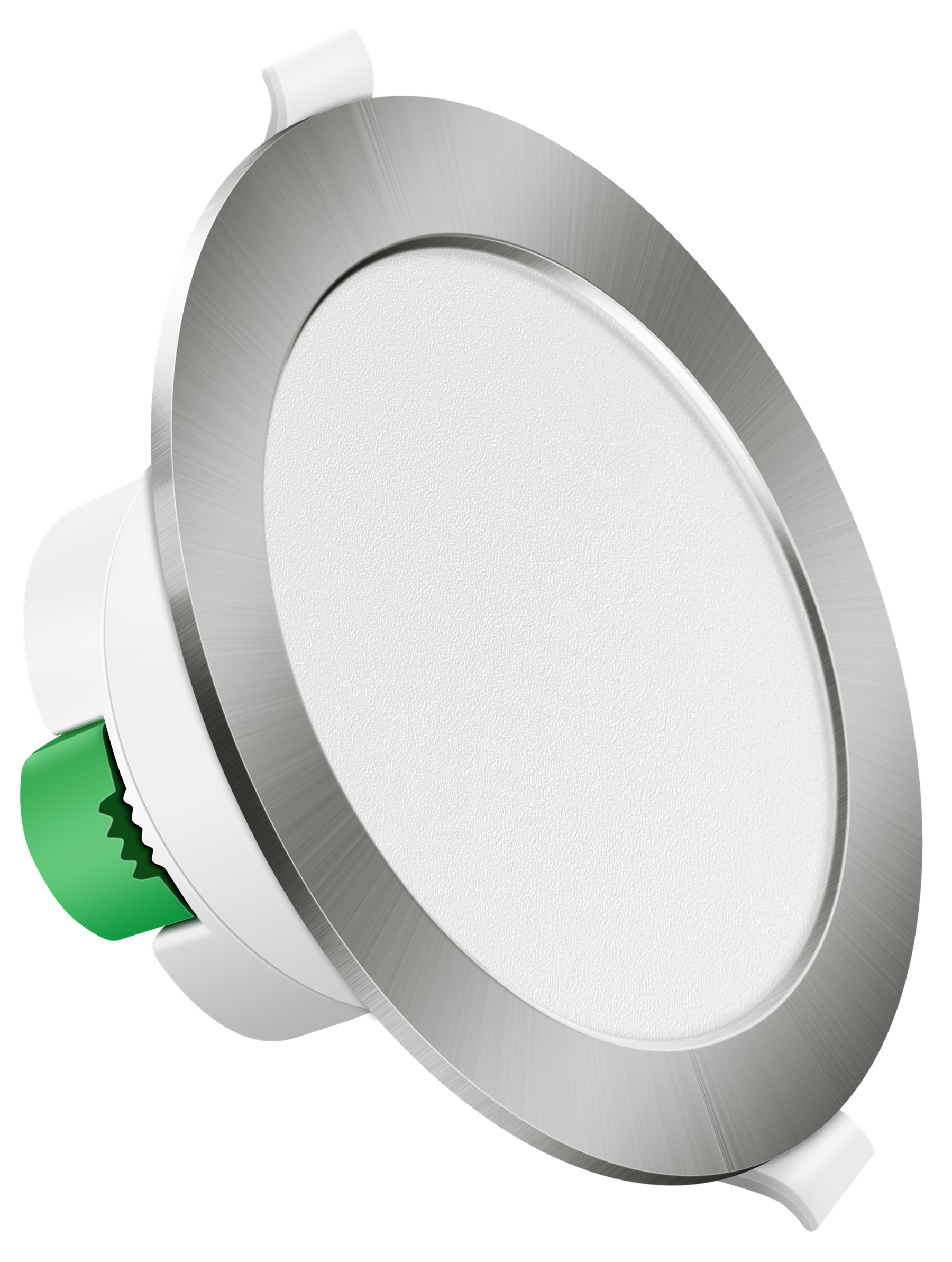

5.Fitting color

White or satin chrome optional, both are welcome by customers.
